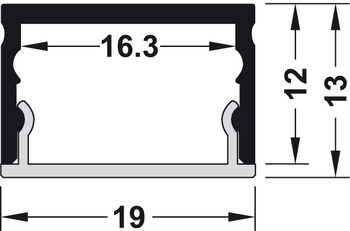

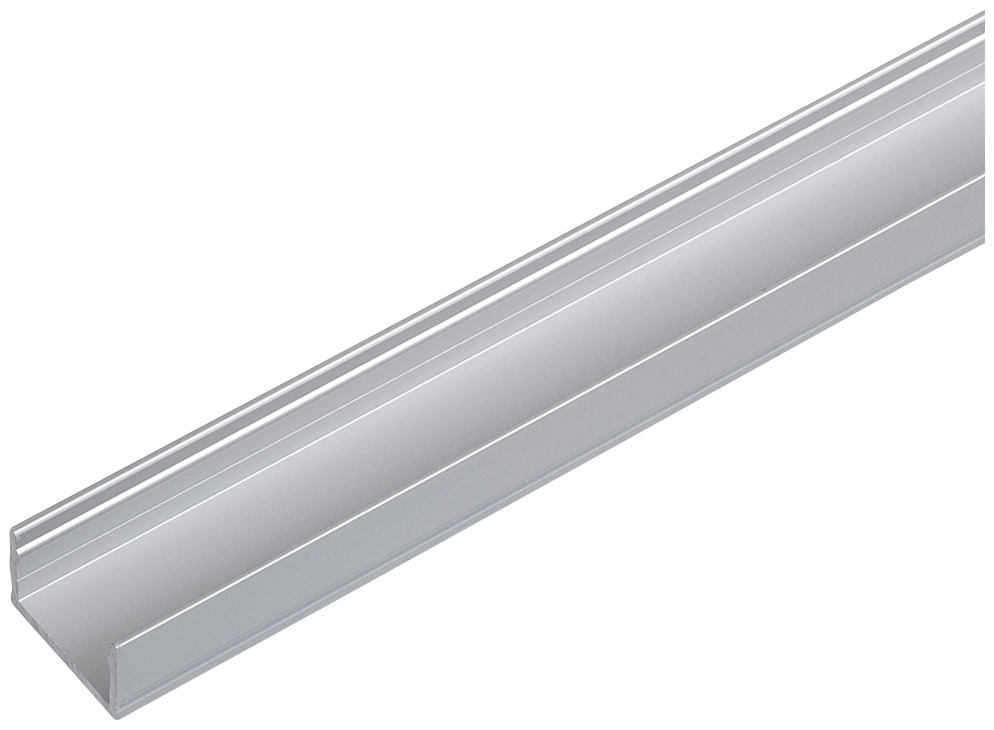

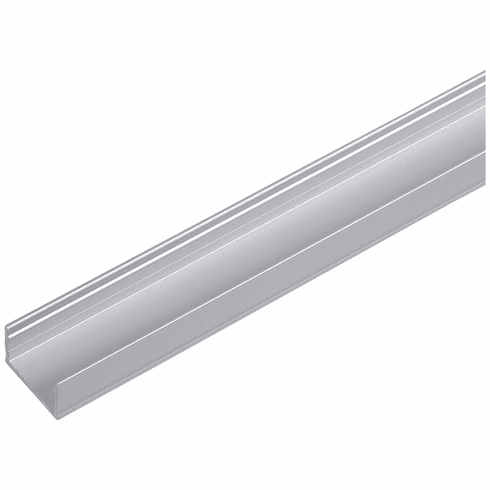

Hafele 833.01.761 Designer Aluminum Profile, (15/32") 12 mm Height Surface Mounted, (78 3/4") 2,000 mm length, without diffuser

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.01.761

  Product Title: Designer Aluminum Profile, Häfele Loox5 Profile 4106, for LED strip lights, surface mounted, 13 mm (1/2"), Aluminium profile, silver coloured anodized, without diffuser, 2,000 mm, profile height: 8 mm

  Category: Designer Aluminum Profile, Häfele Loox5 Profile 4106, for LED strip lights, surface mounted, 13 mm (1/2"), Aluminium profile, silver coloured anodized, without diffuser, 2,000 mm, profile height: 8 mm

  Item Details …

  - May also be flush mounted.

  - Color/finish : Profile: Silver colored, anodizedDiffuser:

  - Version : Without diffuser

  - Material : Profile: Aluminum, Diffuser:

  - Diffuser width : 13.00 mm

  - Installation reference : For under mounting or flush mounting. The diffusers are completely flat.Satin frosted black diffuser for ambient light available (transmittance = 25 %).

  - Order reference

  - Lens sold separately.

  - Supplied with:

  - 1 diffuser


  Additional Information …

  For LED strip lights up to a width of 10 mm.The surface on the aluminum profile that is to be bonded must be cleaned before bonding to the LED strip lights. It must be completely clean, grease-free and dust-free!

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Loox – Electrical Code Compliance

  Hafele_Lighting_2024|Page 219



• Videos

  Play: Example video for mounting LED strip light in aluminium profile - integrated switch not possible with this aluminium profile!
