Hafele 828.50.408 Shelf Suspension, Beta System Matt chrome

Product Information

• Description

  Manufacturer: Hafele
  Item: 828.50.408

  Product Title: Shelf Suspension, Beta System, Matt chrome

  Category: Shelf Suspension, Beta System,

  Item Details …

  - Reclaim your space and add style

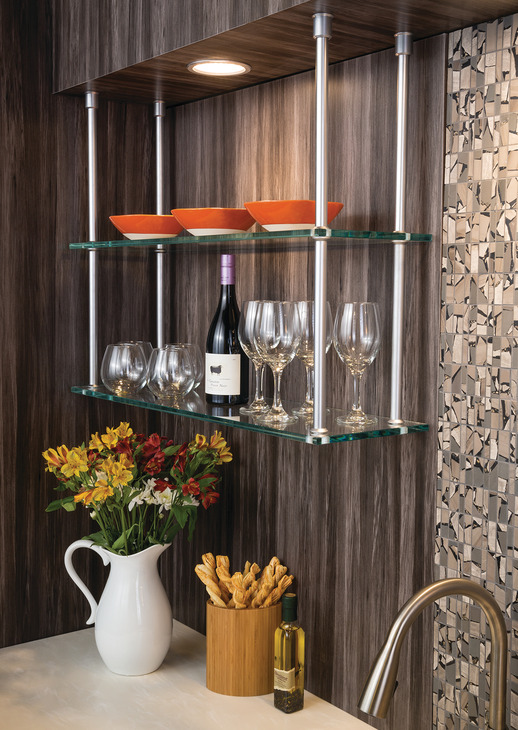

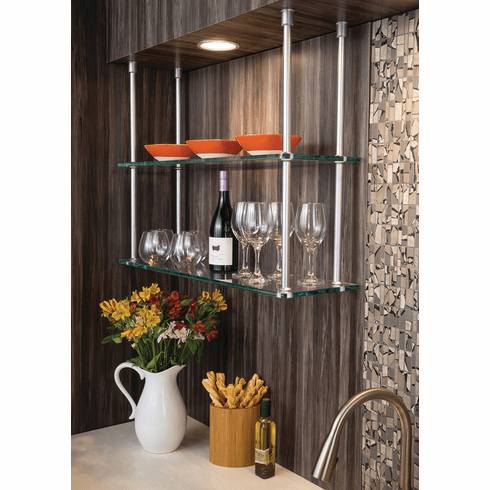

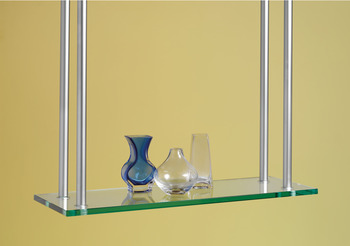

  - Area of application : For shelves suspended from the ceiling

  - Suitable for : Shelves suspended from the ceiling

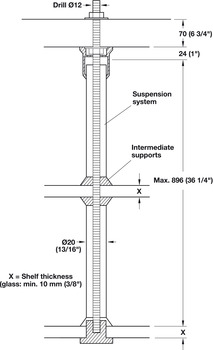

  - For Shelf Thickness (inch) : Min. 3/8"

  - Material : Steel

  - Load bearing capacity : 50.00 kg

  - Load bearing capacity : Per rod: 110 lbs

  - Note on load bearing capacity : Per rod

  - For Shelf Thickness Min. : 9.25 mm

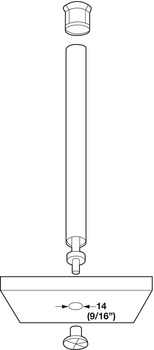

  - Installation : For attachment through wood or glass, a (9/16") 14 mm hole is required

  - Supplied with:

  - Threaded rod M8 x 1000 mm (39 3/8")

  - Ø20 x 896 mm (35 1/4") tube

  - Upper sleeve

  - Centering ring

  - Seeve nut

  - Rubber clamping ring
