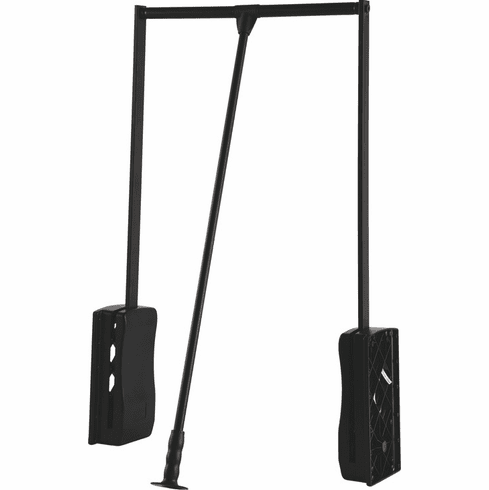

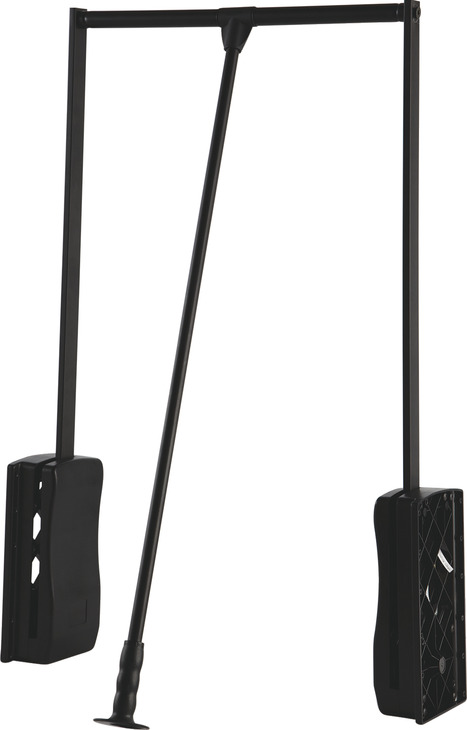

Hafele 805.31.302 Wardrobe Lift, 26 lbs. Weight Capacity For inside closet width: 660 - 890 mm (26" - 35 1/16"), black

Product Information

• Description

  Manufacturer: Hafele
  Item: 805.31.302

  Product Title: Wardrobe Lift, 26 lbs. Weight Capacity, For inside closet width: 660 - 890 mm (26" - 35 1/16"), black

  Category: Wardrobe Lift, 26 lbs. Weight Capacity,

  Item Details …

  - Adjustable width

  - Optional poles are available for higher installation

  - Ergonomic handle

  - Reinforced T-bracket

  - Bumpers attached to add protection to the housing when lowering the clothes bar

  - Spacers included to provide optional distance between the back wall the hangers

  - Load bearing capacity : 12 kg

  - Load bearing capacity : 26 lbs

  - Diameter (inch) : Wardrobe tube: 7/8"

  - Height (inch) : 33 1/6"

  - Material : Arms and pole: SteelHousing: Plastic

  - Min. installation height : 909.00 mm

  - Installation : Attaches to closet sides with screws

  - Supplied with:

  - Mounting hardware

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Wardrobe Lift Mounting Instructions

  Wardrobe Lift Operation Tips

  Wardrobe Lift from Häfele

  TCH_Furniture_Cabinetry_Hardware_2022|Page 4.149



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_4.96-4.97.pdf

  Hafele 805.31.302, 805-31-302, 80531302, 805.31


  Specifications/Hafele Catalog - Page# FC4.70: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Home & Closet Organization Catalog Return to: All Hafele Catalogs
