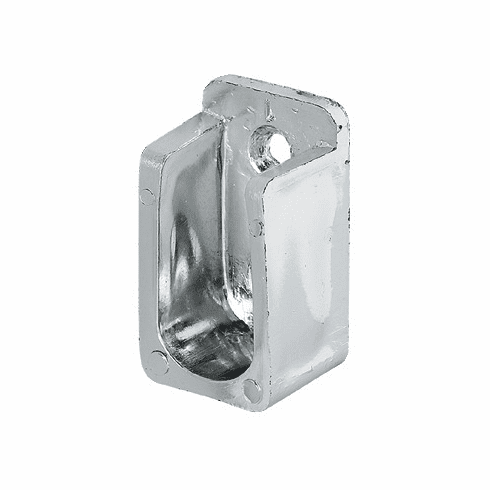

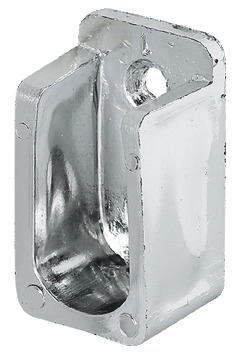

Hafele 803.25.220 Rail End Support, for OVA Wardrobe Rail 30 x 15 mm Chrome-plated

Product Information

• Description

  Manufacturer: Hafele
  Item: 803.25.220

  Product Title: Wardrobe Tube Support, for Screw Mounted on Side Panel, Chrome-plated

  Category: Wardrobe Tube Support, for Screw Mounted on Side Panel, Chrome-plated

  Item Details …

  - Version : With 1 screw hole

  - Color/finish : chrome plated, polished

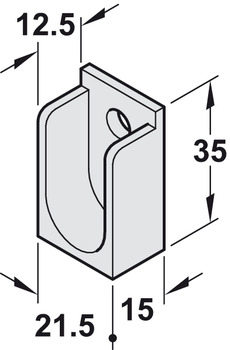

  - Dim. (W x H x D) : 15 x 35 x 21.5 mm

  - Material : Plastic

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 4.130



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_4.78-4.83.pdf

  Hafele 803.25.220, 803-25-220, 80325220, 803.25


  Specifications/Hafele Catalog - Page# FC4.51: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Home & Closet Organization Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader
