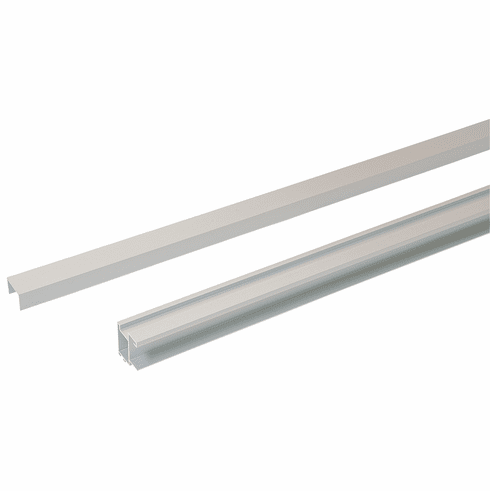

Hafele 793.00.300 S 80 Sliding Door Kit, for 3/4" Doors Bright anodized aluminum

Product Information

• Description

  Manufacturer: Hafele
  Item: 793.00.300

  Product Title: S 80 Sliding Door Kit, for 3/4" Doors, Bright anodized aluminum

  Category: S 80 Sliding Door Kit, for 3/4" Doors,

  Item Details …

  - Vertical handle profiles are used as handles and prevent door from warping

  - Side profiles can be used as handles

  - Optional soft closers are available

  - Quick and easy installation

  - Smooth and quiet operation

  - A kit is for assembly of one sliding door

  - Track sold separately

  - Number of doors : 1.00

  - For door thickness : ?19 mm

  - For door weight : ?100 kg

  - Load bearing capacity : Max: Up to 220 lbs.

  - Set : Set without tracks

  - Area of application : For (3/4") 19 mm doors

  - Material/finish : AluminiumSteelPlastic

  - Supplied with:

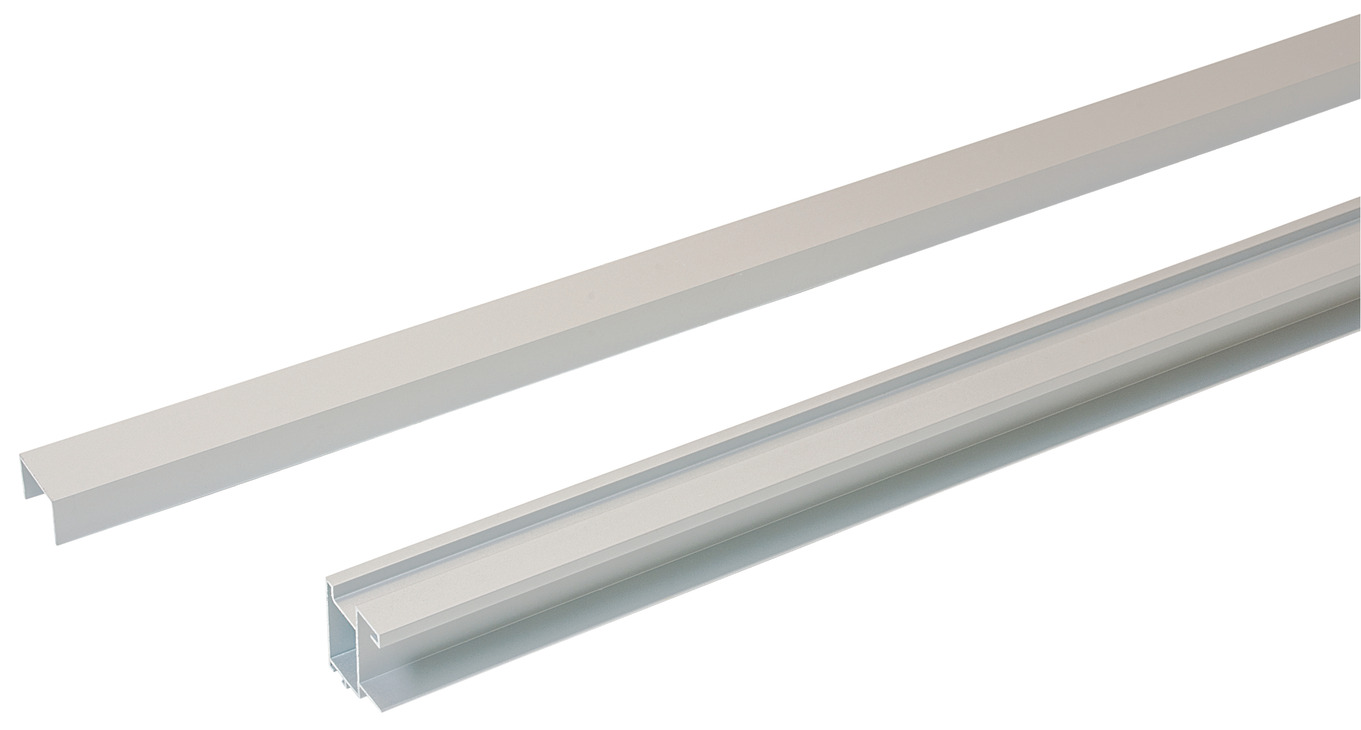

  - 2 Vertical Handle Profiles (2.7 m, 8’ 10 5/16”), Anodized Aluminum

  - 2 Upper/Lower Door Profile (1.2 m, 3’ 11 1/4”), Anodized Aluminum

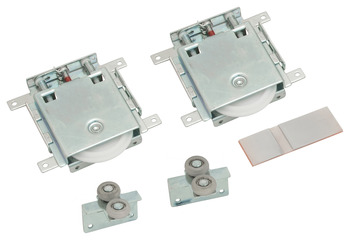

  - 2 Lower rollers, Steel, zinc-plated, plastic

  - 2 Upper rollers, Steel, zinc-plated, plastic

  - 1 Brush seal

  - 1 Door stopper, Plastic

  - 16 screws, Steel

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 7.56



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Track Set, for S 80 Sliding Door (choose one):


  • Bright anodized aluminum, (2 m) 6' 6 3/4" length Bright anodized aluminum, (3 m) 9' 10 1/8" length White, (2 m) 6' 6 3/4" length Matt anodized aluminum, (2 m) 6' 6 3/4" length Matt anodized aluminum, (3 m) 9' 10 1/8" length Oil-rubbed bronze powder-coated aluminum, (2 m) 6' 6 3/4" length Oil-rubbed bronze powder-coated aluminum, (3 m) 9' 10 1/8" length

    793.00.306 793.00.307 793.00.308 793.00.310 793.00.311 793.00.323 793.00.324

    Click to order Click to order Click to order Click to order Click to order Click to order Click to order



  Optional Accessories:



  • Soft Closer, for S 80 Sliding Door
  • Divider Profile, for 3/4" S 80 Sliding Door
  • Fitting, for S 80 Sliding Door
  • Gasket, for S 80 Sliding Door
  • Anti-Derailment Device, for S 80 Sliding Door
