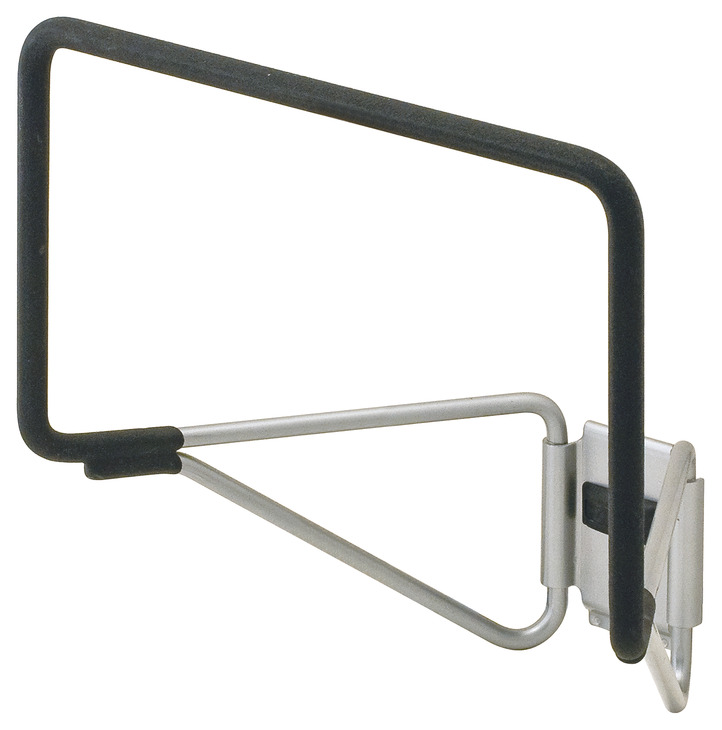

Hafele 792.02.202 Hose Hook, Omni Track For garden hose, rope and extension cords

Product Information

• Description

  Manufacturer: Hafele
  Item: 792.02.202

  Product Title: Hose Hook, TAG Omni Track , For garden hose, rope and extension cords

  Category: Hose Hook, TAG Omni Track®, For garden hose, rope and extension cords

  Item Details …

  - Hooks are used with wall track, 792.00.000

  - If additional strength is required for heavy loads, hole is provided in the center of the base plate to use screw, 792.01.990 to secure hook to the studs behind the dry wall

  - Cover cap, 792.02.349 sold separately, secures the hook to the wall track allowing the hooks to be repositioned horizontally and covers the hole in the base plate

  - Heavy duty

  - Hooks have a rubber non-slip protective coating

  - Color/finish : Black, matt

  - Number of hooks : 1.00

  - Load bearing capacity : 22.00 kg

  - Load bearing capacity : 50 lbs

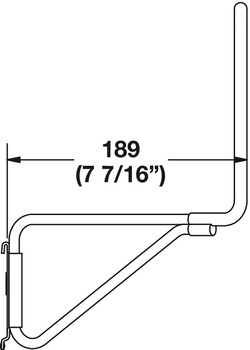

  - Length : 189.00 mm

  - Length (inch) : 7 7/16"

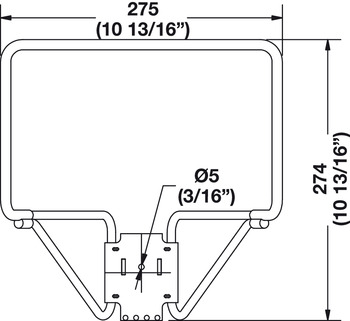

  - Width : 275.00 mm

  - Width (inch) : 10 13/16"

  - Height : 274.00 mm

  - Height (inch) : 10 13/16"

  - Material : Steel, Rubber

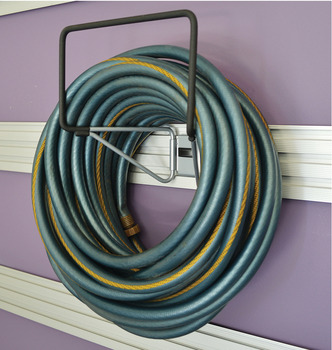

  - Suitable for : Heavy duty, stores garden hoses, ropes and extension cordsHooks have a rubber non-slip protective coating

• Data Sheet

  Detailed Data Sheet

• Product Resources

  792.02.202 Hose Hook Specifications

  TCH_Furniture_Cabinetry_Hardware_2022|PageĀ 4.19

  TCH_Furniture_Cabinetry_Hardware_2022|PageĀ 4.27



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_4.14-4.15.pdf

  Hafele 792.02.202, 792-02-202, 79202202, 792.02


  Specifications/Hafele Catalog - Page# FC4.12: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Home & Closet Organization Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Large Cover Cap, TAG Omni Track
  • Wall Track, TAG Omni Track
