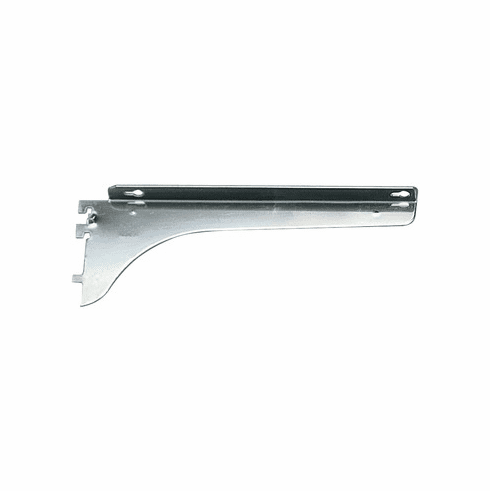

Hafele 774.25.237 183 Series Bracket, KV, for 83 Series Standards Weight capacity up to 400 lbs./pair, Length 18"; model 183C ANO 18

Product Information

• Description

  Manufacturer: Hafele
  Item: 774.25.237

  Product Title: 183 Series Bracket, KV, for 83 Series Standards, Weight capacity up to 400 lbs./pair, Length 18"; model 183C ANO 18

  Category: 183 Series Bracket, KV, for 83 Series Standards, Weight capacity up to 400 lbs./pair

  Item Details …

  - Proper installation and mounting required. Tested to meet or exceed ANSI/BHMA 156.9-2003 performance standards. Weight limits are based on standards mounted on 16" centers and are intended for use as general guidelines only.

  - Flanges include keyhole style mounting holes to make attachment of wood shelves quick and simple

  - Model series : 183

  - Suitable for : Heavy duty

  - Version : Single slot designAdjustable in 1" increments

  - Unique selling points (USP) : Flanges include keyhole style mounting holes to make attachment of wood shelves quick and simple

  - Special notes on usage : Proper installation and mounting required. Tested to meet or exceed ANSI/BHMA 156.9-2003 performance standards. Weight limits are based on standards mounted on 16" centers and are intended for use as general guidelines only.

  - Adherence to standards : RoHS compliant

  - Gauge formula : 16.00

  - Material : Steel

  - Finish : Anochrome

  - Load bearing capacity max. : 208.65 kg

  - Note on load bearing capacity : Based on per pair

  - Load bearing capacity : Pair: Up to 460 lbs

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 4.64



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_4.29-4.34.pdf

  Hafele 774.25.237, 774-25-237, 77425237, 774.25


  Specifications/Hafele Catalog - Page# FC11.61: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  83 Series Standards, KV, 3/4" x 1/2", 16 ga. Steel (choose one):


  • Weight capacity up to 400 lbs./pair, Length 24", model 83 ANO 24 Weight capacity up to 400 lbs./pair, Length 36", model 83 ANO 36 Weight capacity up to 400 lbs./pair, Length 48", model 83 ANO 48 Weight capacity up to 400 lbs./pair, Length 60", model 83 ANO 60 Weight capacity up to 400 lbs./pair, Length 72", model 83 ANO 72 Weight capacity up to 400 lbs./pair, Length 84", model 83 ANO 84 Weight capacity up to 400 lbs./pair, Length 96", model 83 ANO 96

    774.20.243 774.20.244 774.20.245 774.20.246 774.20.247 774.20.248 774.20.249

    Click to order Click to order Click to order Click to order Click to order Click to order Click to order



  Optional Accessories:



  • Zip-R Screw, Flat Countersunk Head, #2 Phillips Drive
  • Zip-R Screw, Flat Countersunk Head, #2 Square Drive
  • Zip-R Screw, Pan Head, #2 Phillips Drive
  • Spax® Screw, Flat Countersunk Head with Uni-Drive, Zinc-Plated
  • 83 Series Standards, KV, 3/4" x 1/2", 16 ga. Steel
