Hafele 774.25.235 183 Series Bracket, KV, for 83 Series Standards Weight capacity up to 400 lbs./pair, Length 14"; model 183C ANO 14

Product Information

• Description

  Manufacturer: Hafele
  Item: 774.25.235

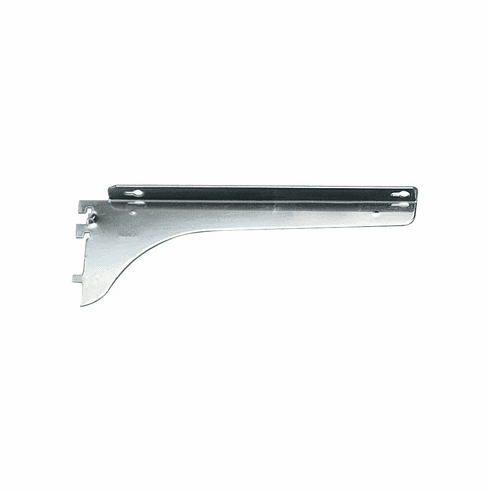

  Product Title: 183 Series Bracket, KV, for 83 Series Standards, Weight capacity up to 400 lbs./pair, Length 14"; model 183C ANO 14

  Category: 183 Series Bracket, KV, for 83 Series Standards, Weight capacity up to 400 lbs./pair

  Item Details …

  - Proper installation and mounting required. Tested to meet or exceed ANSI/BHMA 156.9-2003 performance standards. Weight limits are based on standards mounted on 16" centers and are intended for use as general guidelines only.

  - Flanges include keyhole style mounting holes to make attachment of wood shelves quick and simple

  - Model series : 183

  - Suitable for : Heavy duty

  - Version : Single slot designAdjustable in 1" increments

  - Unique selling points (USP) : Flanges include keyhole style mounting holes to make attachment of wood shelves quick and simple

  - Special notes on usage : Proper installation and mounting required. Tested to meet or exceed ANSI/BHMA 156.9-2003 performance standards. Weight limits are based on standards mounted on 16" centers and are intended for use as general guidelines only.

  - Adherence to standards : RoHS compliant

  - Gauge formula : 16.00

  - Material : Steel

  - Finish : Anochrome

  - Load bearing capacity max. : 208.65 kg

  - Note on load bearing capacity : Based on per pair

  - Load bearing capacity : Pair: Up to 460 lbs
