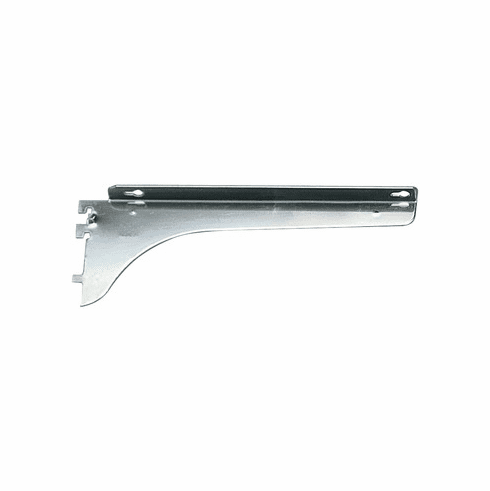

Hafele 774.25.223 183 Series Bracket, KV, for 83 Series Standards Weight capacity up to 400 lbs./pair, Length 10"; model 183L ANO 10

Product Information

• Description

  Hafele 774.25.223 183 Series Bracket, KV, for 83 Series Standards
  Weight capacity up to 400 lbs./pair, Length 10"; model 183L ANO 10



  Model series : 183

  Features : Heavy duty
  Single slot design

  Adjustment : Adjustable in 1" increments

  Load bearing capacity : *Pair: Up to (460 lbs.) 208 kg

  Gauge : 16

  Material : Steel



  Optional items:
  Zip-R Screw, Flat Countersunk Head, #2 Phillips, with Nibs
  Zip-R Screw, Flat Countersunk Head, #2 Phillips Drive
  Zip-R Screw, Flat Countersunk Head, #2 Square Drive, with Nibs
  Zip-R Screw, Flat Countersunk Head, #2 Square Drive
  Spax® Screw, Flat Countersunk Head with Uni-Drive, Zinc-Plated
  83 Series Standards, KV, 3/4" x 1/2", 16 ga. Steel


• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_4.29-4.34.pdf

  Hafele 774.25.223, 774-25-223, 77425223, 774.25


  Specifications/Hafele Catalog - Page# FC11.61: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
