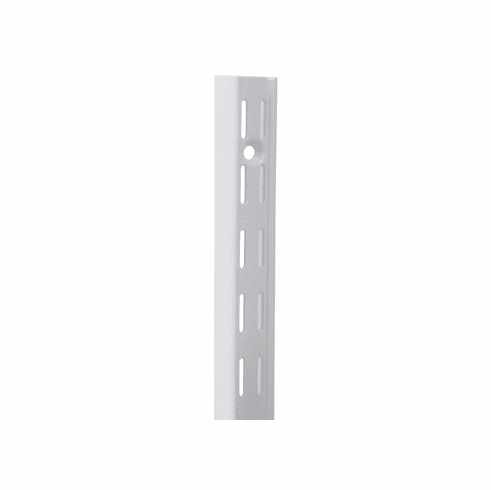

Hafele 774.21.705 82 Series Standards, KV, 1 1/16" x 11/16", 14 ga. Steel

Product Information

• Description

  Manufacturer: Hafele
  Item: 774.21.705

  Product Title: 82 Series Standards, KV, 1 1/16" x 11/16", 14 ga. Steel, weight capacity up to 450 lbs./pair, Length 48", model 82 WH 48

  Category: 82 Series Standards, KV, 1 1/16" x 11/16", 14 ga. Steel, weight capacity up to 450 lbs./pair

  Item Details …

  - ?*Proper installation and mounting required. Tested to meet or exceed ANSI/BHMA 156.9-2003 performance standards. Weight limits are based on standards mounted on 16" centers and are intended for use as general guidelines only. No warranty, expressed or implied, supplied by Häfele.

  - RoHS compliant

  - Screws are not included

  - Made in USA

  - Double slot design

  - Adjustable in 1 1/4" increments

  - Gauge formula : 14.00

  - Color : White

  - Load bearing capacity : Pair: Up to 450 lbs

  - Model series : 82

  - Suitable for : Heavy duty

  - Version : Heavy dutyDouble slot design

  - Unique selling points (USP) : Double slot designAdjustable in 1 1/4" increments

  - Special notes on usage : ?*Proper installation and mounting required. Tested to meet or exceed ANSI/BHMA 156.9-2003 performance standards. Weight limits are based on standards mounted on 16" centers and are intended for use as general guidelines only. No warranty, expressed or implied, supplied by Häfele. RoHS compliant Screws are not includedMade in USA

  - Adherence to standards : RoHS compliant

  - Width : 26.99 mm

  - Width (inch) : 1 1/16"

  - Depth : 1.59 mm

  - Depth (inch) : 11/16"

  - Material : Steel

  - Note : Screws are not included.

  - Load bearing capacity max. : 204.12 kg

  - Note on load bearing capacity : Based on per pair


  Additional Information …

  Screws are not included.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 4.63



• Specifications

• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  182 Series Bracket, KV, for 82 Series Standards (choose one):


  • weight capacity up to 450 lbs./pair, Length 10.5", model 182 WH 10.5 weight capacity up to 450 lbs./pair, Length 12.5", model 182 WH 12.5 weight capacity up to 450 lbs./pair, Length 14.5", model 182 WH 14.5 weight capacity up to 450 lbs./pair, Length 18.5", model 182 WH 18.5 weight capacity up to 450 lbs./pair, Length 24", model 182 WH 24

    774.25.703 774.25.704 774.25.705 774.25.706 774.25.707

    Click to order Click to order Click to order Click to order Click to order



  Optional Accessories:



  • Zip-R Screw, Flat Countersunk Head, #2 Phillips Drive
  • Zip-R Screw, Flat Countersunk Head, #2 Square Drive
  • Zip-R Screw, Pan Head, #2 Phillips Drive
  • Spax® Screw, Flat Countersunk Head with Uni-Drive, Zinc-Plated
