Hafele 774.20.246 83 Series Standards, KV, 3/4" x 1/2", 16 ga. Steel Weight capacity up to 400 lbs./pair, Length 60", model 83 ANO 60

Product Information

• Description

  Manufacturer: Hafele
  Item: 774.20.246

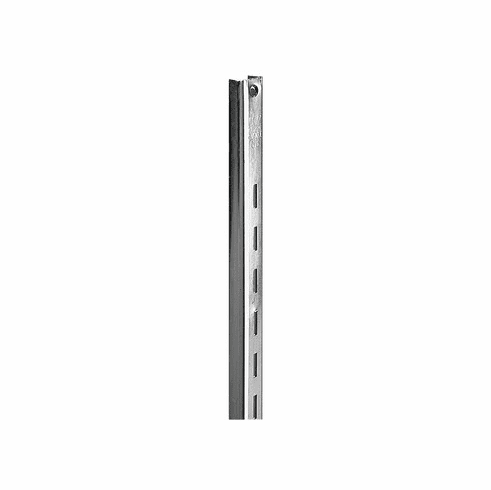

  Product Title: 83 Series Standards, KV, 3/4" x 1/2", 16 ga. Steel, Weight capacity up to 400 lbs./pair, Length 60", model 83 ANO 60

  Category: 83 Series Standards, KV, 3/4" x 1/2", 16 ga. Steel, Weight capacity up to 400 lbs./pair

  Item Details …

  - Proper installation and mounting required. Tested to meet or exceed ANSI/BHMA 156.9-2003 performance standards. Weight

  - limits are based on standards mounted on 16" centers and are intended for use as general guidelines only.

  - No warranty, expressed or implied, supplied by Häfele.

  - Single slot design

  - Heavy duty

  - Adjustable in 1" increments

  - Made in USA

  - RoHS compliant

  - Gauge formula : 16.00

  - Load bearing capacity : Pair: Up to 460 lbs

  - Model series : 83

  - Version : Heavy dutySingle slot design

  - Unique selling points (USP) : Single slot designHeavy dutyAdjustable in 1" incrementsMade in USARoHS compliant

  - Special notes on usage : Proper installation and mounting required. Tested to meet or exceed ANSI/BHMA 156.9-2003 performance standards. Weight limits are based on standards mounted on 16" centers and are intended for use as general guidelines only. No warranty, expressed or implied, supplied by Häfele.

  - Width : 19.00 mm

  - Width (inch) : 3/4"

  - Depth : 12.00 mm

  - Depth (inch) : 1/2"

  - Material : Steel

  - Finish : Anochrome

  - Note : Screws are not included

  - Load bearing capacity max. : 209.00 kg

  - Note on load bearing capacity : Based on per pair


  Additional Information …

  Screws are not included
