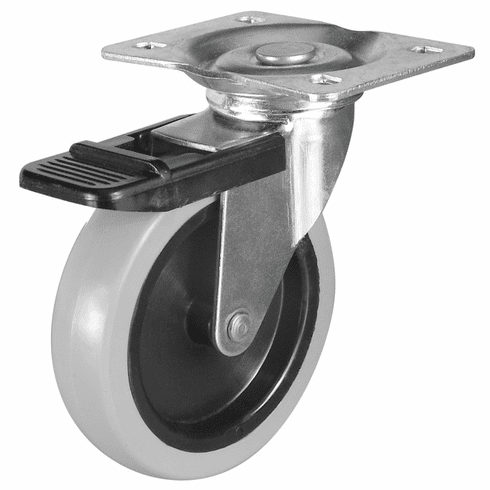

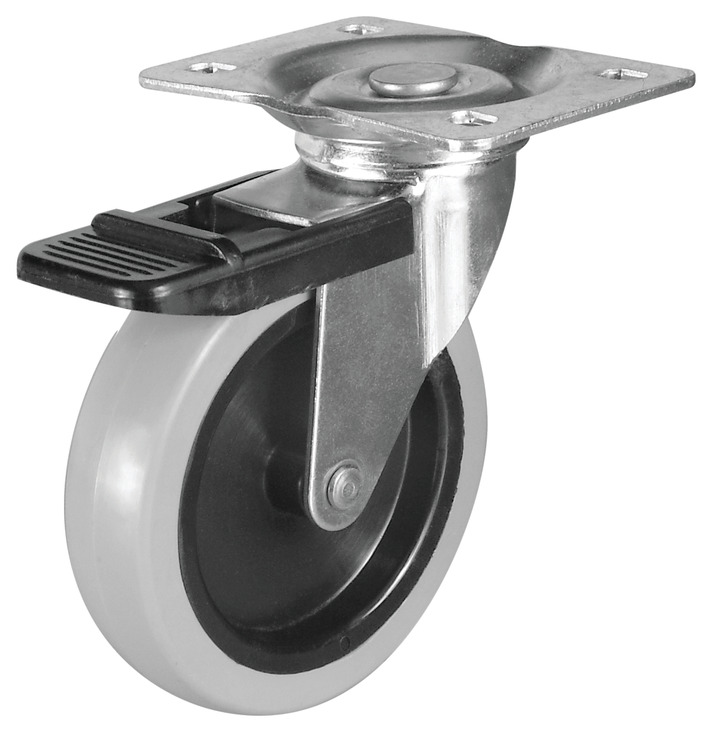

Hafele 663.25.931 Caster, Plate Mount, with Brake, Load-Bearing Capacity 66 lbs. Wheel 100 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 663.25.931

  Product Title: Caster, Plate Mount, with Brake, Load-Bearing Capacity 66 lbs., Wheel Ø100 mm

  Category: Caster, Plate Mount, with Brake, Load-Bearing Capacity 66 lbs.,

  Item Details …

  - Non-marring polyurethane wheel

  - Moves with ease on both hard and soft surfaces

  - Non-marring polyurethane wheel

  - Moves with ease on both hard and soft surfaces

  - Castor version : With brake

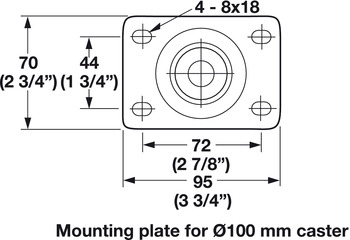

  - Installation : Plate mount

  - Load bearing capacity : 30.00 kg

  - Load bearing capacity : 66 lbs

  - Color/finish : Outer wheel: GrayInner wheel: Black, Outer wheel: GrayInner wheel: Black

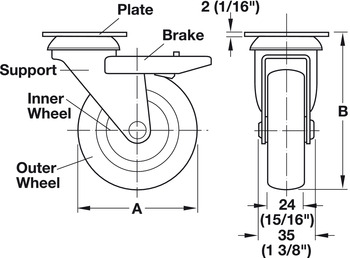

  - Material : Outer wheel: PU-PolyurethaneInner wheel: NylonSupport/plate: Steel

  - Installation reference : Non-marring polyurethane wheelMoves with ease on both hard and soft surfaces


  Additional Information …

  Brake can be easily removed if not required.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 6.9



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_6.9-6.9.pdf

  Hafele 663.25.931, 663-25-931, 66325931, 663.25


  Specifications/Hafele Catalog - Page# FC6.10: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Table, Legs, Casters Catalog Return to: All Hafele Catalogs
