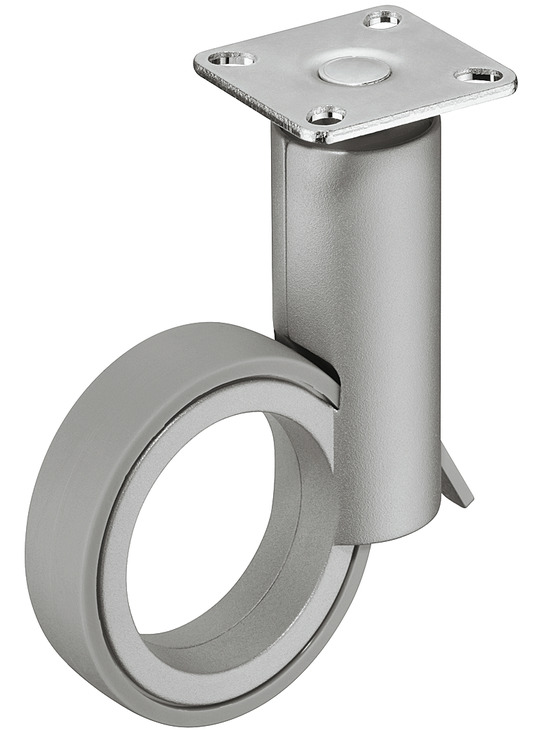

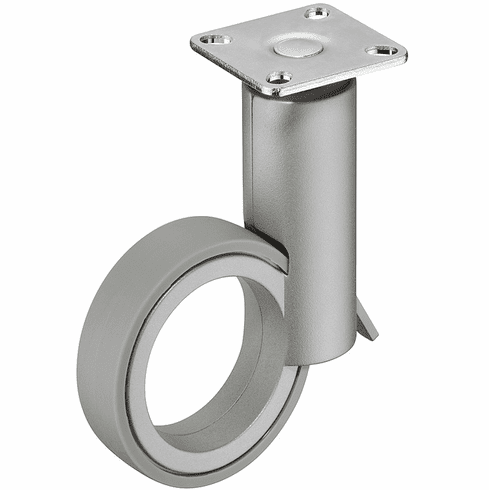

Hafele 661.88.901 Caster, No Hub, Load Bearing Capacity 110 lbs. with screw-on plate and brake, Silver aluminum colored with gray wheel

Product Information

• Description

  Manufacturer: Hafele
  Item: 661.88.901

  Product Title: Caster, No Hub, Load Bearing Capacity 110 lbs., with screw-on plate and brake, Silver aluminum colored with gray wheel

  Category: Caster, No Hub, Load Bearing Capacity 110 lbs., with screw-on plate and brake

  Item Details …

  - hard running surface: For soft floors, e.g. carpets

  - Soft running surface: For hard floors, e.g. parquet flooring

  - Castor version : No hub

  - Thread type : Soft

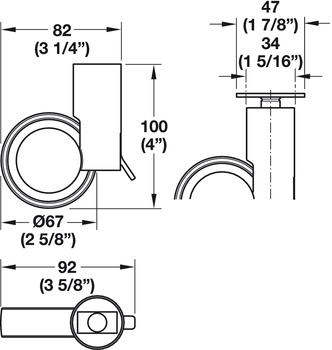

  - Wheel Ø : 67.00 mm

  - Installation height : 108.00 mm

  - Load bearing capacity : 50.00 kg

  - Load bearing capacity : 110 lbs per caster

  - Area of application : for hard floors, e.g. parquet flooring

  - Material : Housing: Zinc alloywheel: Plastic

  - Order reference

  - Casters are priced per piece but packed 2 casters per bag. Order 2 casters and you will receive 2 casters. To receive 4, please order 4 casters.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 6.8



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_6.8-6.8.pdf

  Hafele 661.88.901, 661-88-901, 66188901, 661.88
