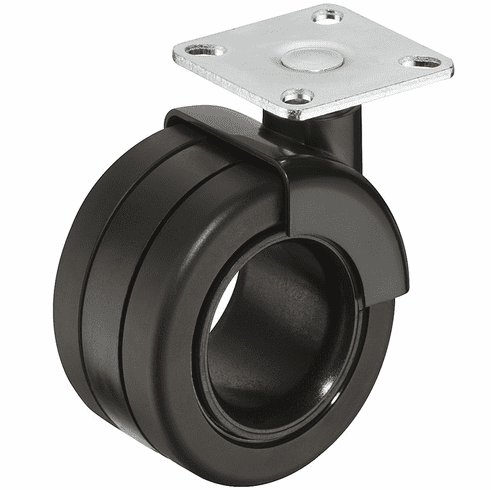

Hafele 661.24.301 Caster, Plate Mount, Load-Bearing Capacity 110 lbs., Black/Black free running, Without brake

Product Information

• Description

  Manufacturer: Hafele
  Item: 661.24.301

  Product Title: Caster, Plate Mount, Load-Bearing Capacity 110 lbs., Black/Black, free running, Without brake

  Category: Caster, Plate Mount, Load-Bearing Capacity 110 lbs., Black/Black, free running

  Item Details …

  - hard running surface: For soft floors, e.g. carpets

  - Soft running surface: For hard floors, e.g. parquet flooring

  - Thread type : Soft

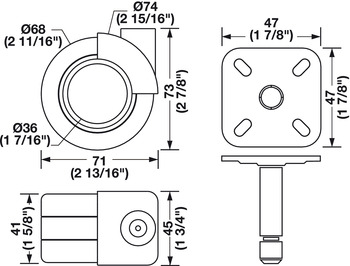

  - Wheel Ø : 68.00 mm

  - Installation height : 82.00 mm

  - Load bearing capacity : 50.00 kg

  - Load bearing capacity : Per caster: 110 lbs

  - Diameter (inch) : Wheel: 2 11/16"

  - Color/finish : Black/black, Housing/Hub: BlackWheel: Black

  - Height (inch) : 18 29/32"

  - Material : Steel & plastic

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 6.7



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_6.70-6.71.pdf

  Hafele 661.24.301, 661-24-301, 66124301, 661.24


  Specifications/Hafele Catalog - Page# FC6.7: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Table, Legs, Casters Catalog Return to: All Hafele Catalogs
