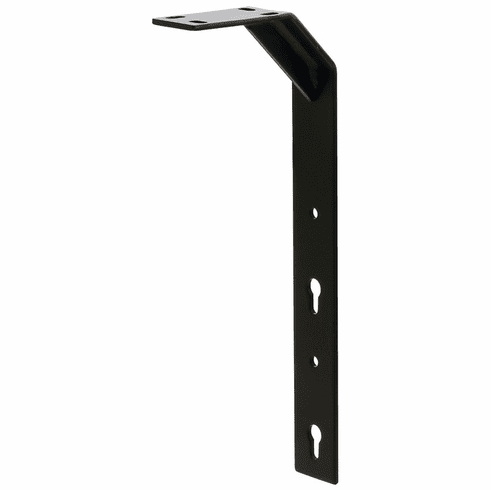

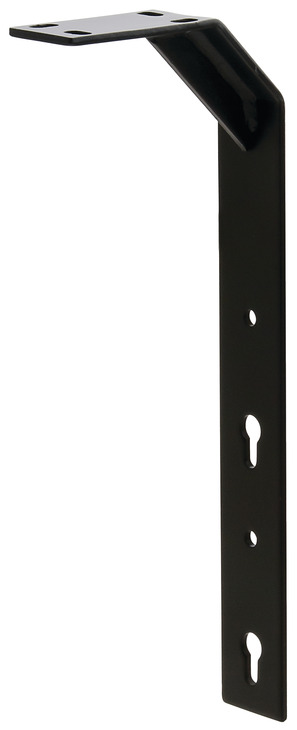

Hafele 654.34.380 Panel Bracket, Modesty Panel Clip System

Product Information

• Description

  Manufacturer: Hafele
  Item: 654.34.380

  Product Title: Panel Bracket, Modesty Panel Clip System,

  Category: Panel Bracket, Modesty Panel Clip System, 654.34.380



  Item Details …

  - Allows modesty panels to be attached to Diameter:60 mm (2 3/8”) legs

  - Recommended modesty panel height 400 (15 3/4”)

  - Panels are easily “clipped” on to legs, and are removeable

  - Color/finish : Black, Epoxy-coated

  - Area of application : For connecting tables, table tops, chairs, beds etc.

  - Material : Steel

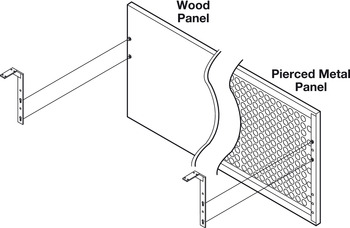

  - Installation : Attaches metal or wood modesty panels, provided by end user

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 6.88



• Specifications

  Hafele 654.34.380, 654-34-380, 65434380, 654.34


  Specifications/Hafele Catalog - Page# FC6.75: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Table, Legs, Casters Catalog Return to: All Hafele Catalogs
