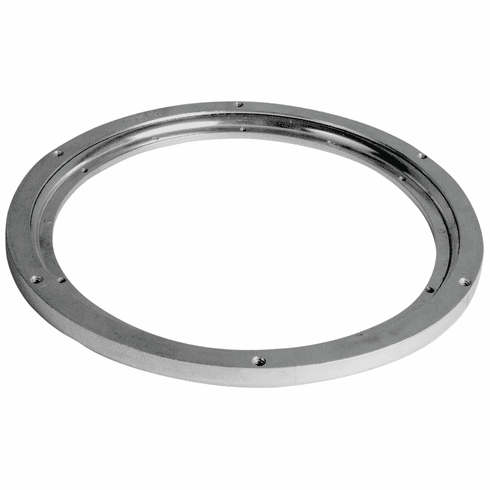

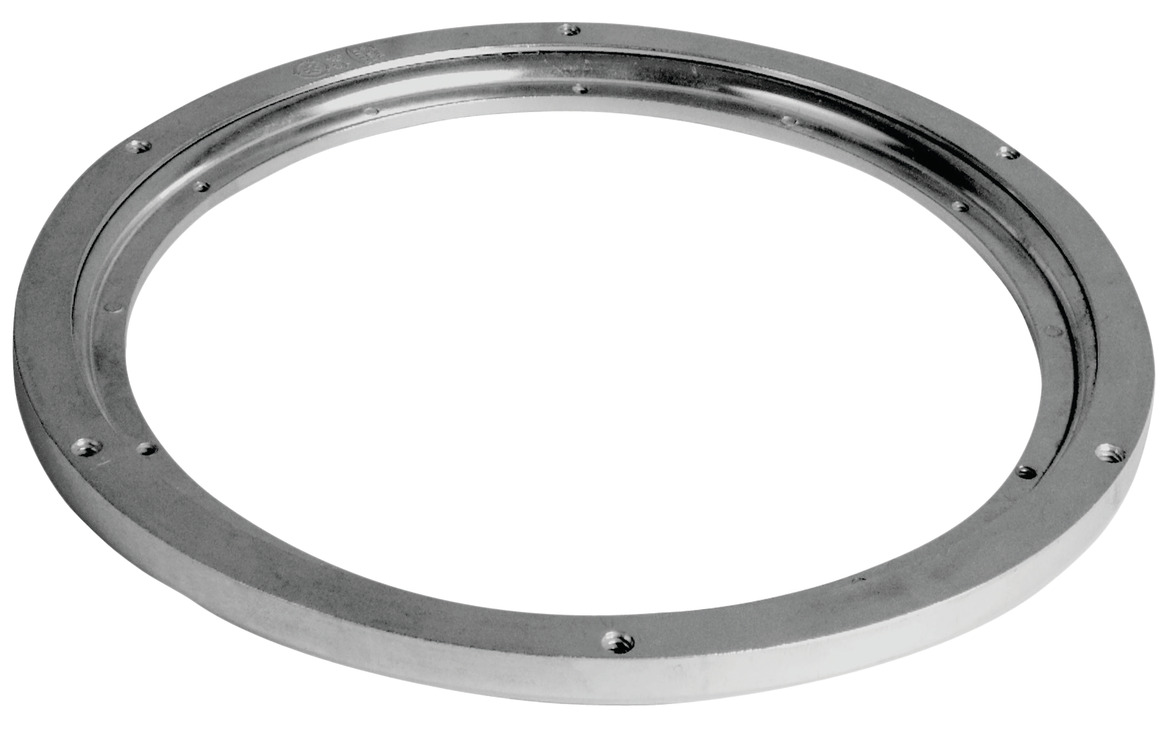

Hafele 646.20.006 Turntable, Heavy Duty, Aluminum 80 kg (175 lb) Capacity
 Capacity, Item# 646.20.006, 64620006, 646-20-006 "Pin It")
Product Information
Description
Manufacturer: Hafele
Item: 646.20.006
Product Title: Turntable, Heavy Duty, Aluminum, 80 kg (175 lb) Capacity
Category: Turntable, Heavy Duty, Aluminum, 80 kg (175 lb) Capacity
Item Details
- Quantity of through holes and non-skid pads depends on model
- Rotates 360°

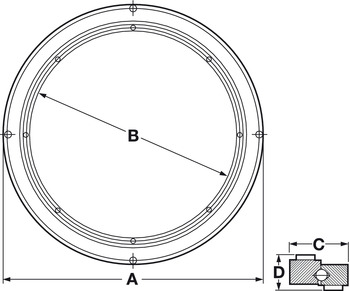

- Dim. C : 1 3/16"
- Dim. A : Outer: 12 3/4"
- Dim. B : Inner: 10 7/16"
- Dim. D : 9/16"

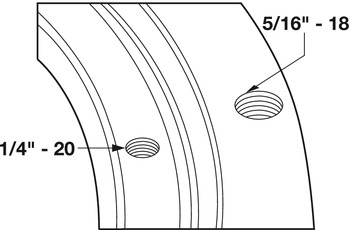

- Version : Holes Inner: 6 with 1/4"-20Pads Inner: 0Holes Outer: 6 with 5/6" - 18Pads Outer: 6 Separate
- Load bearing capacity : 80.00 kg
- Load bearing capacity : 175 lbs
- Material : Aluminum
- Installation : Pads can be removed and drilled through if positive attachment is necessaryThrough holes are countersunk with Diameter:4.5 mm (3/16”)With threaded inner and outer through holes for "bolting down" of turntableData Sheet
