Hafele 642.40.008 Vario Drop-Leaf Fitting Set, aluminum, silver

Product Information

• Description

  Manufacturer: Hafele
  Item: 642.40.008

  Product Title: Drop Leaf Table Fitting Set, TKB, table extension fittings, depth: Approx. 250 mm, width: Installl a fitting approx. every 600 mm, load: Approx. 20 kg

  Category: Drop Leaf Table Fitting Set, TKB, table extension fittings, depth: Approx. 250 mm, width: Installl a fitting approx. every 600 mm, load: Approx. 20 kg

  Item Details …

  - Additional sets should be installed at intervals of 500 mm (20”)

  - Load bearing capacity : 33 lbs

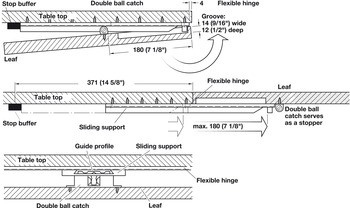

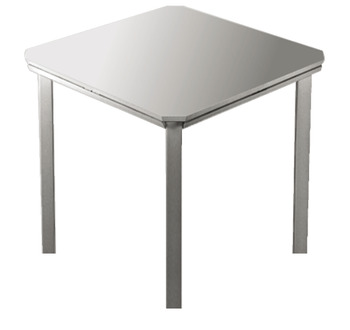

  - Area of application : For extending the table top by folding out

  - Material : Aluminum

  - Load bearing capacity : 15.00 kg

  - Load bearing capacity information : Approx.

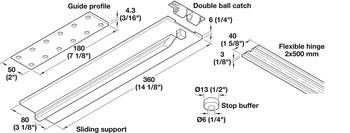

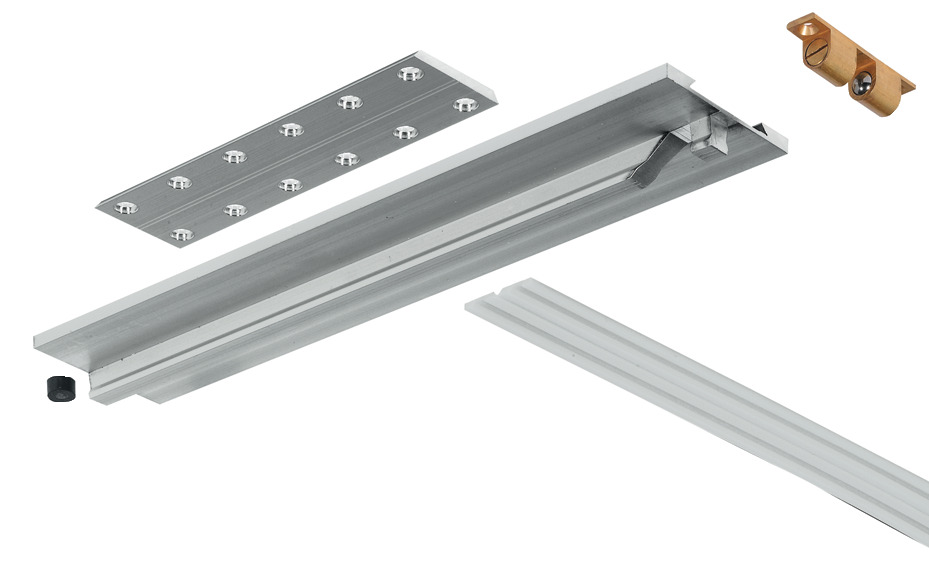

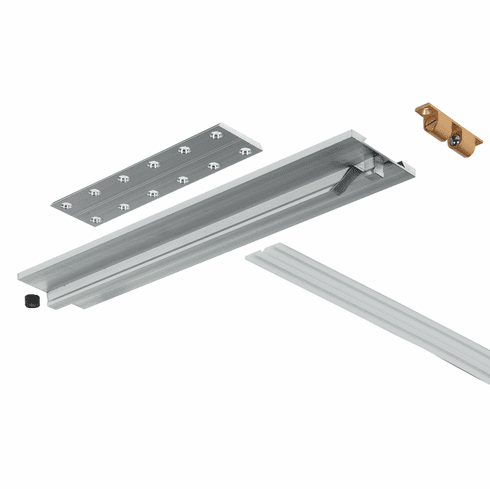

  - Supplied with:

  - Sliding support

  - Guide profile

  - 2 Flexible plastic hinges

  - Brass double ball catch

  - Rubber stop buffer


  Additional Information …

  Not recommended for leaf depths over 250 mm (12")

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 6.86



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_6.70-6.71.pdf

  Hafele 642.40.008, 642-40-008, 64240008, 642.40
