Hafele 642.19.928 Pull-out table and folding fitting, with folding table leg internal installation depth: 555mm & up mm, load-bearing capacity: approx. 60 kg

Product Information

• Description

  Manufacturer: Hafele
  Item: 642.19.928

  Product Title: Pull-out table and folding fitting, with folding table leg, Internal installation width: 862 (34")

  Category: Pull-out table and folding fitting, with folding table leg,

  Item Details …

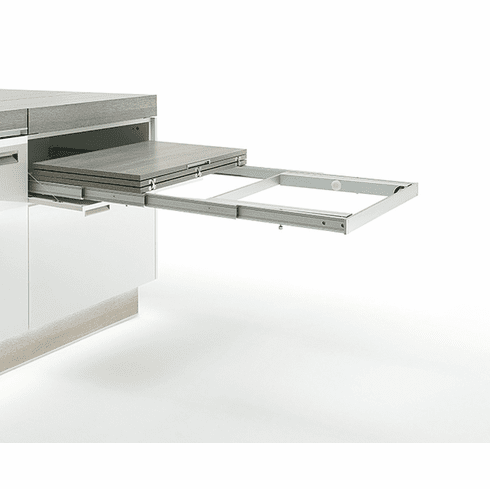

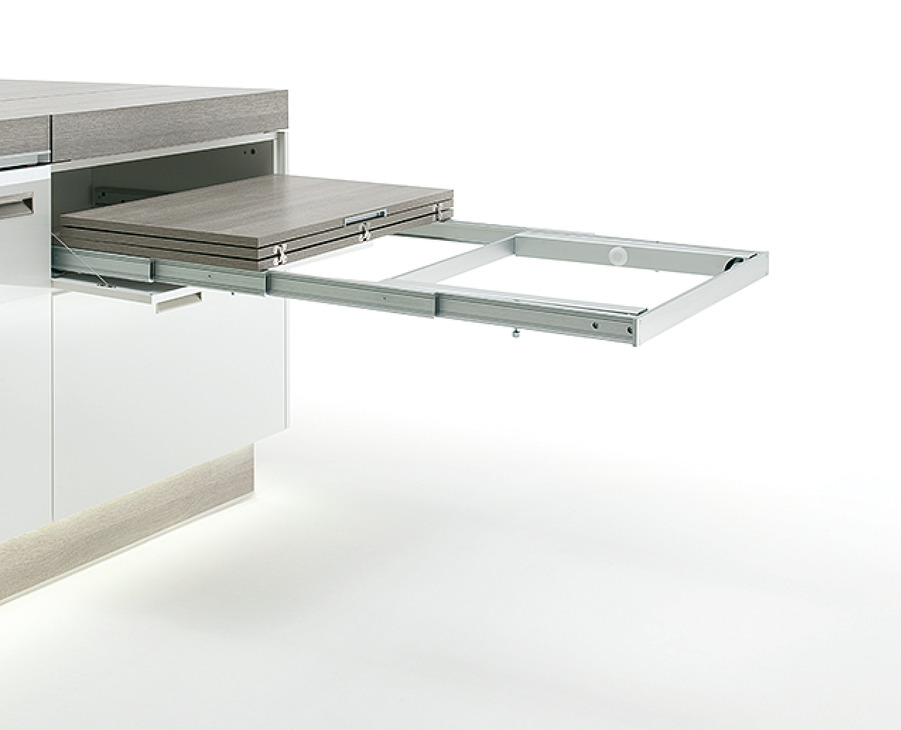

  - A pull-out table system that can be installed in a drawer space

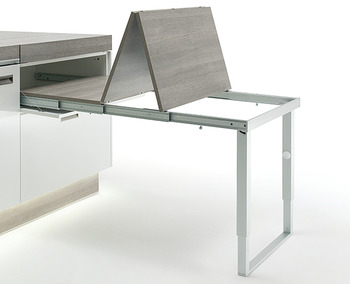

  - Seats up to 5 people

  - Product type : Pull-out table and folding fitting

  - Load bearing capacity : 60.00 kg

  - Color/finish : Steel: white aluminum, Guide profiles: Anodized, Aluminum: Silver colored anodized

  - Internal installation depth : ? 22 1/8"

  - Load bearing capacity : Approx. 132 lbs

  - Area of application : For kitchen and living room furniture

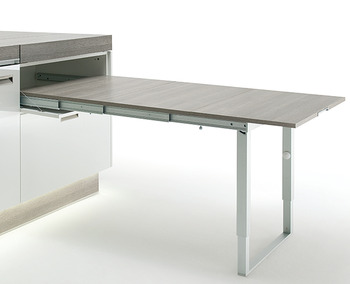

  - Version : With a fold-down support leg

  - Material : Guide profiles: AluminumTable leg: Steel

  - Load bearing capacity information : approx. specification

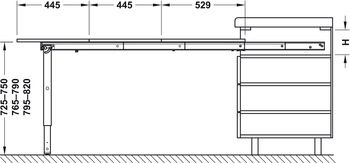

  - Internal installation height : 83 mm (3 1/4") + 3 x top thickness

  - Internal installation depth : ?562 mm

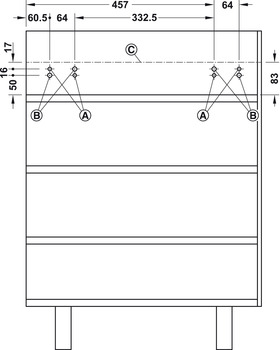

  - Installation reference : The 3 top leaves dimensions 529 mm (20 7/8"), 445 mm (17 1/2"), 445 mm (17 1/2") cannot be changed

  - Order reference

  - Table tops are not supplied - high quality material should be used for folding tops to insure they can withstand the folding procedure.

  - Hinges for fold down drawer front not supplied.

  - Folding table hinges not supplied – 6 are required

  - Supplied with:

  - 1 pair of running tracks

  - Fixing material

  - Mounting instructions


  Additional Information …

  Successful installation of this fitting requires a high degree of skill. Precise location of mounting holes and milling the hinges for folding tops is critical, CNC equipment is recommended.
