Hafele 637.95.314 Threaded U-Bracket, for 3/4" Material With M10 thread

Product Information

• Description

  Manufacturer: Hafele
  Item: 637.95.314

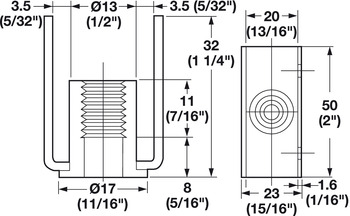

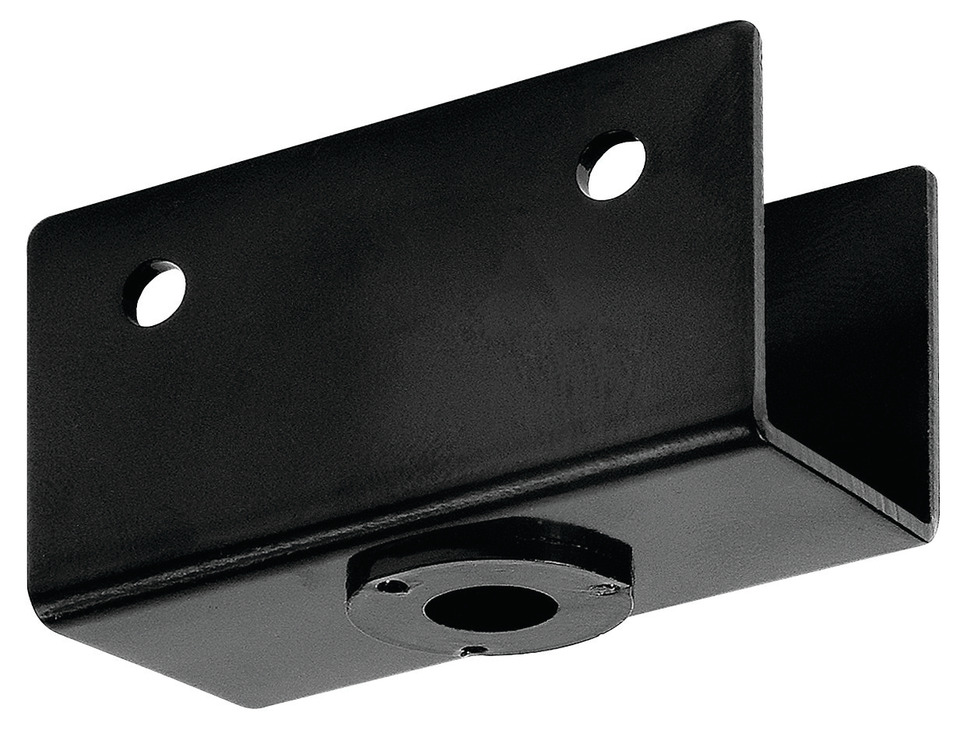

  Product Title: Threaded U-Bracket, for 3/4" Material, With M10 thread

  Category: Threaded U-Bracket, for 3/4" Material,

  Item Details …

  - Version : Holes on one side for fastening

  - Area of application : Slightly oversized to allow for material thickness tolerances

  - Color/finish : Black, Epoxy-coated

  - For wood thickness : 19.00 mm

  - For min. panel thickness : 3/4"

  - Material : Steel

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 6.77



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_6.10-6.10.pdf

  Hafele 637.95.314, 637-95-314, 63795314, 637.95
