Hafele 637.80.361 Adjustment Foot/Tube, 46 mm 100 mm (4") base height

Product Information

• Description

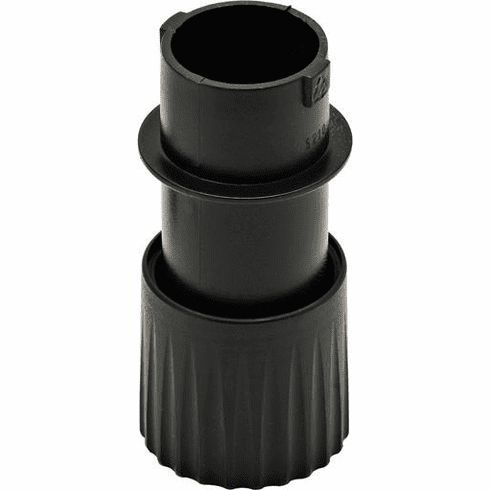

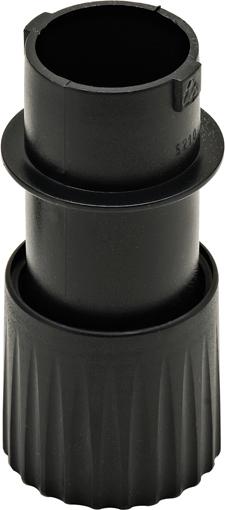

  Hafele 637.80.361 Adjustment Foot/Tube, 46 mm
  100 mm (4") base height

  Additional items required to complete installation:
  Triangle Mounting Plate, 46 mm

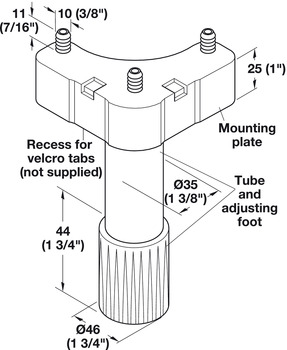

  Installation : Heights listed are total, including mounting plate, tube and adjusting foot
  Plinth panel attaches with the clips shown, or with Velcro applied to the mounting plate recess

  Load bearing capacity : Per leg: (330 lbs) 150 kg

  Adjustment : Range: -10/+18 mm

  Material : Plastic

  Color : Black



  Supplied with :

  4 feet

  4 tubes



  Optional items:

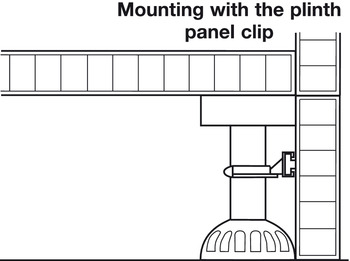

  Plinth Panel Clip, for 46 mm Adjustment Foot/Tube
  Plinth Panel Clip, for 46 mm Adjustment Foot/Tube, Groove Mounted

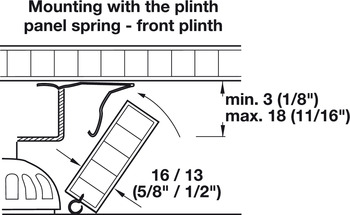

  Plinth Panel Spring, for Front Plinth


• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_6.22-6.27.pdf

  Hafele 637.80.361, 637-80-361, 63780361, 637.80
