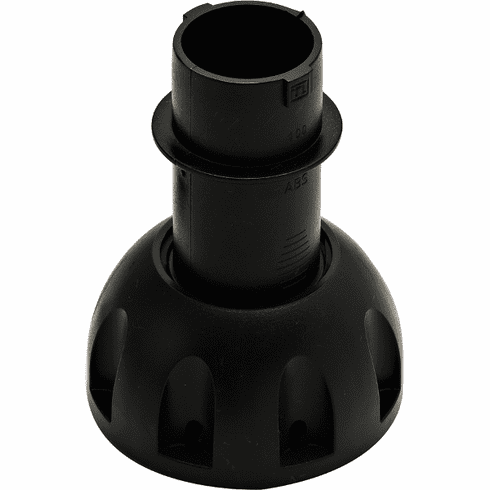

Hafele 637.80.351 Adjustment Foot/Tube, 78 mm 100 mm (4") base height

Product Information

• Description

  Manufacturer: Hafele
  Item: 637.80.351

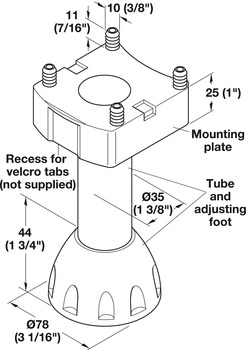

  Product Title: Adjustment Foot/Tube, Ø78 mm, 100 mm (4") base height

  Category: Adjustment Foot/Tube, Ø78 mm,

  Item Details …

  - Easily adjusts weights up to 150 kg (330 lbs.) per leg

  - Heights listed are total, including mounting plate

  - Adjustment facility : -10/+18 mm

  - Area of application : For Ø78 mm (3 1/16") round mounting plate

  - Material : Plastic

  - Load bearing capacity : Per leg: 330 lbs

  - Supplied with:

  - 4 Feet

  - 4 Tubes

  - Pre-mounted nails

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 6.28



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_6.22-6.27.pdf

  Hafele 637.80.351, 637-80-351, 63780351, 637.80


  Specifications/Hafele Catalog - Page# FC6.42: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Table, Legs, Casters Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Square Mounting Plate, for Ø78 mm Adjustment Foot/Tube (choose one):


  • Press-fit Screw-mount

    637.79.300 637.79.301

    Click to order Click to order



  Optional Accessories:



  • Plinth profile, with sealing lip

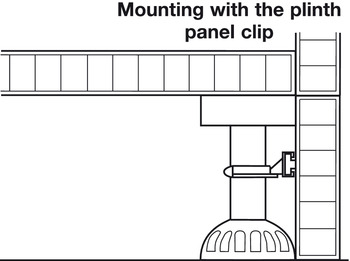

  • Plinth Panel Clip, for Ø78 mm Adjustment Foot/Tube
  • Plinth Panel Clip, for Ø78 mm Adjustment Foot/Tube, Groove Mounted

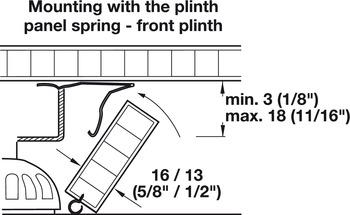

  • Plinth Panel Spring, for Front Plinth
