Hafele 637.76.334 Mounting Plate AXILO 78 Plinth Adjusting Fitting System, Press-fit

Product Information

• Description

  Manufacturer: Hafele
  Item: 637.76.334

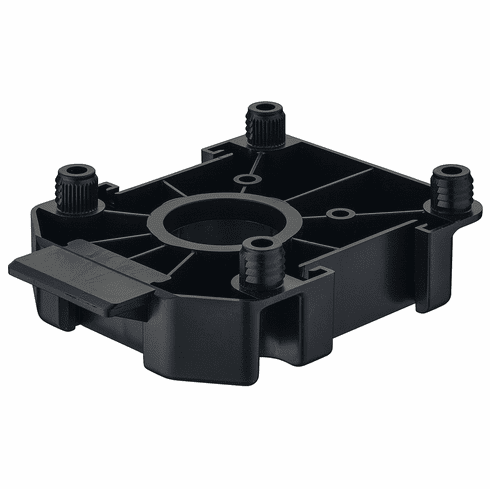

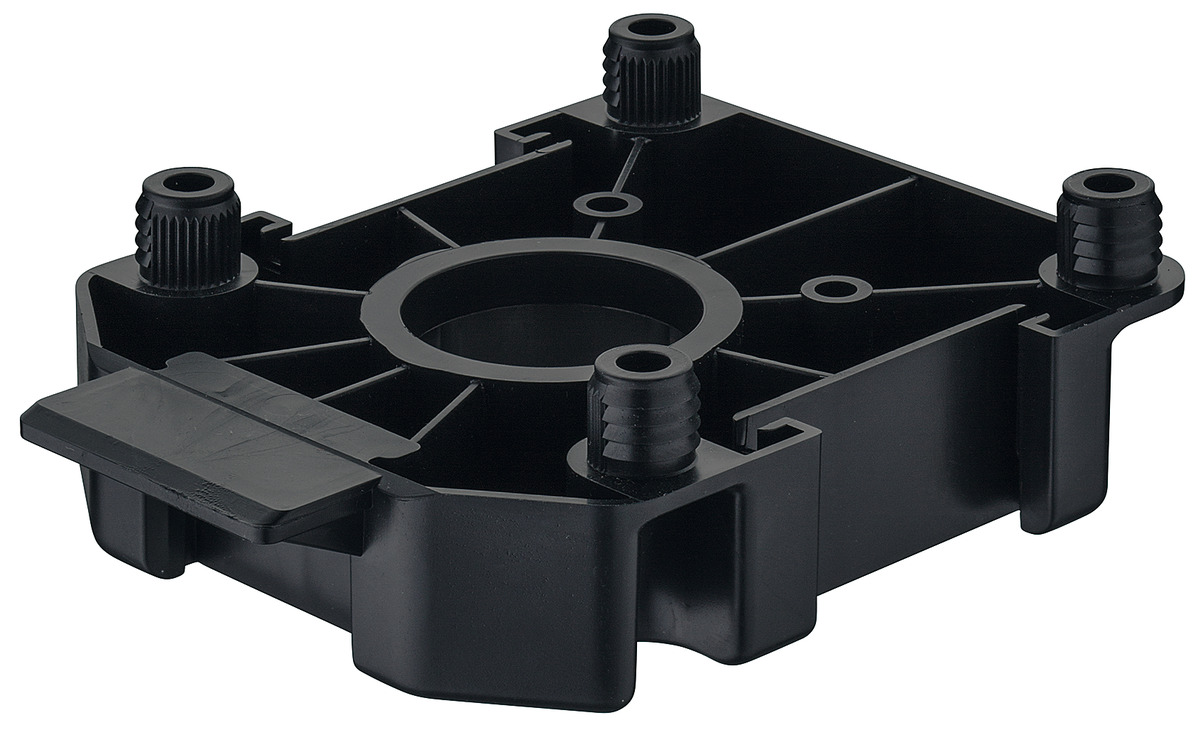

  Product Title: Mounting Plate, Häfele AXILO® Cabinet Leveling System, With side panel support tab, Press-fit into 10 mm holes

  Category: Mounting Plate, Häfele AXILO® Cabinet Leveling System, With side panel support tab

  Item Details …

  - Version : Rectangular

  - Dim. (H x W x D) : 25 x 79 x 92 mm

  - Material : Plastic

  - Color/finish : Black

  - Order reference

  - Order AXILO® feet separately.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

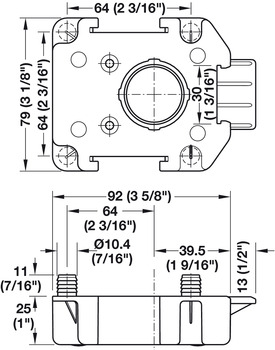

  637.76.334 Drawing
