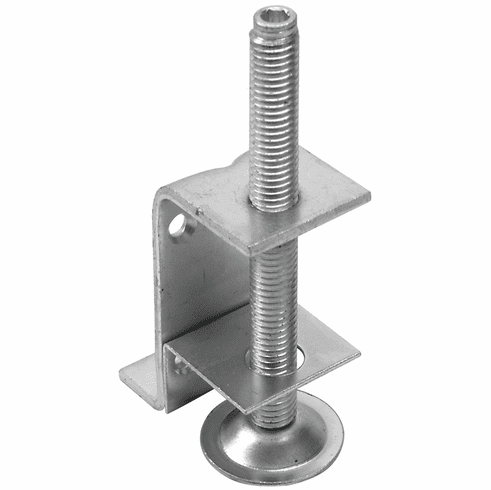

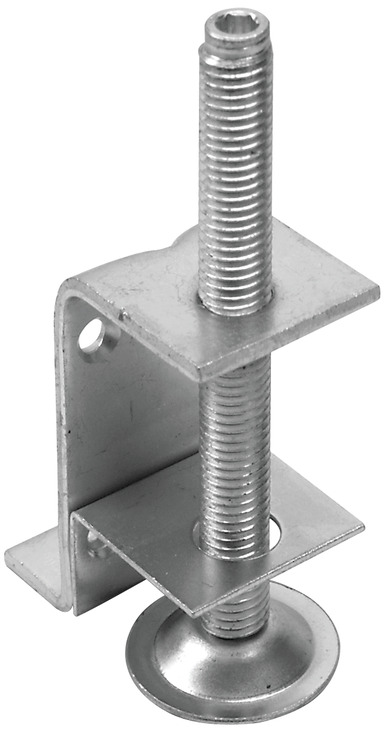

Hafele 637.31.941 Base Leveler, with Supporting Bracket Load bearing capacity 150 kg (330 lbs.)

Product Information

• Description

  Manufacturer: Hafele
  Item: 637.31.941

  Product Title: Base Leveler, with Supporting Bracket, Load bearing capacity 150 kg (330 lbs.)

  Category: Base Leveler, with Supporting Bracket, Load bearing capacity 150 kg (330 lbs.)

  Item Details …

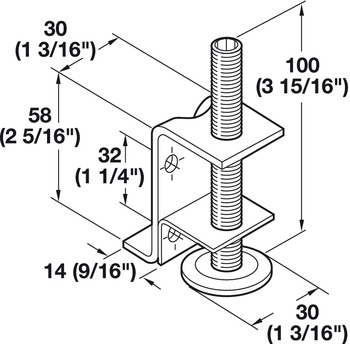

  - Adjusts with M5 hex key

  - Finish/Color : Zinc Plated

  - Load bearing capacity : 150.00 kg

  - Adjustment facility : + 32 mm (1 1/4")

  - Installation height : Min. 4"

  - Load bearing capacity : 330 lbs

  - Material : Steel

  - Color/finish : Zinc

  - Drive : Hexagon socket SW5 at top

  - Installation : Screw mounted

  - Supplied with:

  - M10 x 100 (4") bolt

  - Swiveling base plate

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 6.75



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_6.57-6.65.pdf

  Hafele 637.31.941, 637-31-941, 63731941, 637.31
