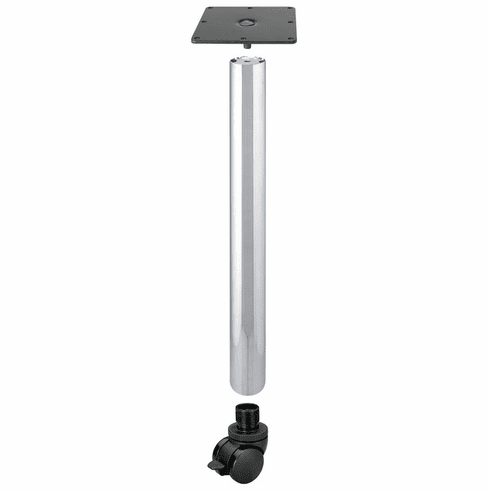

Hafele 635.60.485 E-Leg, 60 mm System 705 mm (27 3/4"), Satin nickel

Product Information

• Description

  Manufacturer: Hafele
  Item: 635.60.485

  Product Title: E-Leg, Ø60 mm System, 705 mm (27 3/4"), Satin nickel

  Category: E-Leg, Ø60 mm System, 705 mm (27 3/4")

  Item Details …

  - Use 2 legs with levelers and 2 legs with casters, for a table which can be “wheel barrowed”

  - Legs come with insert in bottom to accept levelers, spacers and casters - to be ordered separately

  - Area of application : With plastic threaded insert to accept optional casters or levelers

  - Diameter : 60.00 mm

  - Material : Legs: Steel, plated or epoxy-coatedMounting plate: SteelInsert: Plastic

  - Load bearing capacity : Static load rating: 220 lbs per leg

  - Load bearing capacity information : 100 kg per leg

  - Order reference

  - Requires optional levelers, spacers or casters to be ordered separately.

  - Supplied with:

  - 4 Legs

  - 4 Mounting plates

  - Screws #9 x 1”

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 6.40



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_6.29-6.35.pdf

  Hafele 635.60.485, 635-60-485, 63560485, 635.60


  Specifications/Hafele Catalog - Page# FC6.50: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Table, Legs, Casters Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:

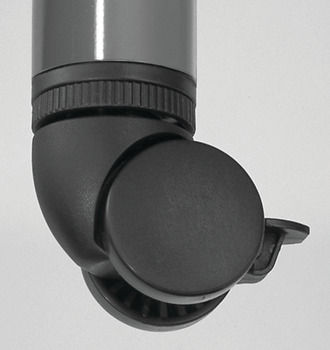

  • Caster With Brake, Ø60 mm System & KOYO Legs
  • Spacer, Ø60 mm, Adjustable KOYO Legs

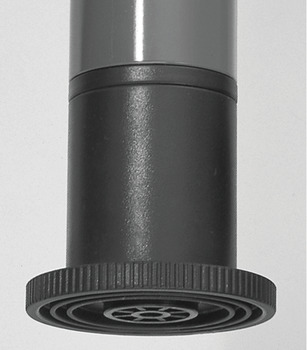

  • Leveler, Ø60 mm System & KOYO Legs
  • Replacement Insert, Ø60 mm System
