Hafele 635.37.975 E-Leg, Tapered 710 mm (28"), Satin nickel

Product Information

• Description

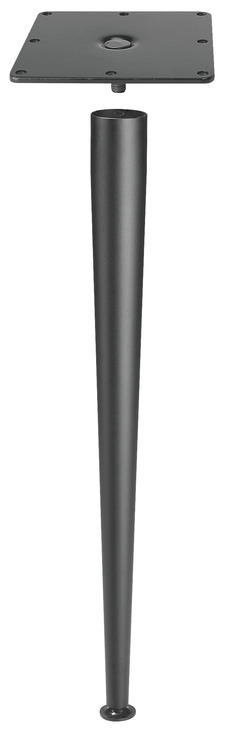

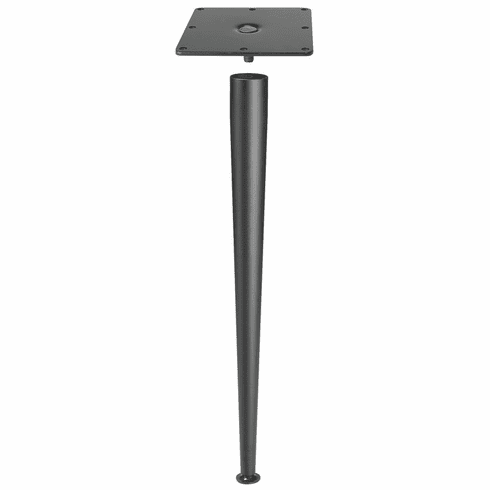

  Hafele 635.37.975 E-Leg, Tapered
  710 mm (28"), Satin nickel

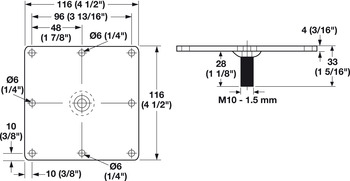

  Installation : Leg screws into steel square mounting plate with M10 bolt

  Load bearing capacity : Static load rating: (220 lbs.) per leg 100 kg

  Adjustment : +10 mm (3/8��)

  Material : Leg: Steel
  Leveler: Plastic
  Mounting plate: Steel

  Note :

  • Leg screws into steel square mounting plate with M10 bolt

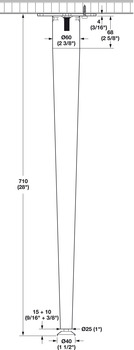

  • Leg tapers from 60 to 25 mm (2 3/8�� to 1��)





  Supplied with :

  4 legs

  4 mounting plates

  Levelers

  Screws #9 x 1��





• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_6.29-6.35.pdf
