Product Information
Description

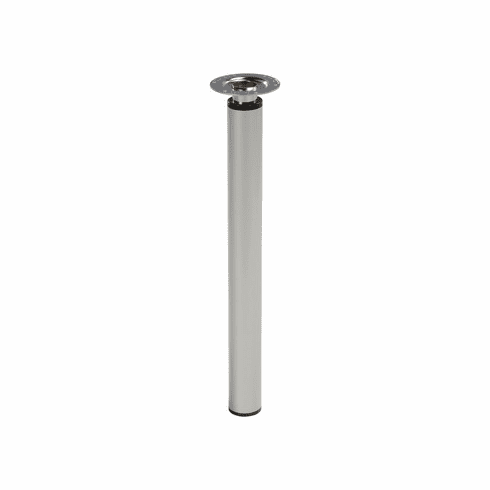

Hafele 635.01.271 60 mm, Adjustable KOYO Leg
Height adjustment range 300 mm (11 3/4"), Silver/Aluminum RAL 9006
Additional items required to complete installation:
Caster With Brake, 60 mm System & KOYO Legs
Leveler, 60 mm System & KOYO Legs

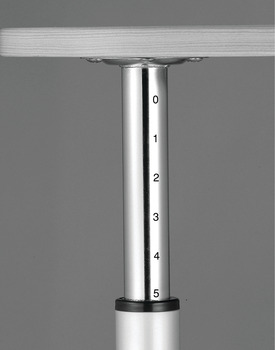

Spacer, 60 mm, Adjustable KOYO LegsAdjustment : Please note that each leg must be adjusted separately

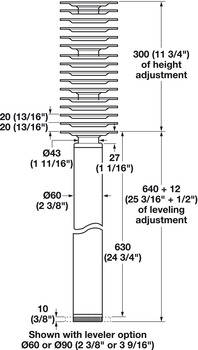

Height adjustment: 300 mm (11 3/4)Load bearing capacity : Static load rating: (500 lbs.) per leg 226 kg Height : Minimum height with leveler installed: (25 3/16) 640
Maximum height: (37) 940 mm (Spacers/casters add to this height accordingly)Material : Steel Supplied with : 4 legs
4 mounting plates
Specifications
For detailed PDF specifications, click:
Hafele Catalog Page: selection_6.45-6.45.pdfHafele 635.01.271, 635-01-271, 63501271, 635.01 Specifications/Hafele Catalog - Page# FC6.63:
Click to: Show catalog here ...
Click to: Show catalog in a new page.
