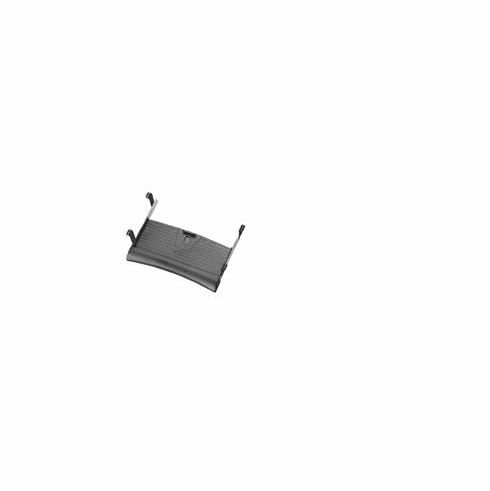

Hafele 632.65.305 Keyboard Tray, with Sloped Edge with mouse tray

Product Information

• Description

  Manufacturer: Hafele
  Item: 632.65.305

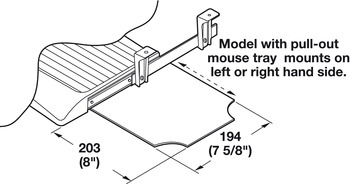

  Product Title: Keyboard Tray, with Sloped Edge, with mouse tray

  Category: Keyboard Tray, with Sloped Edge,

  Item Details …

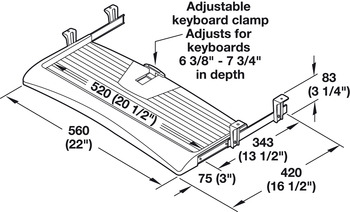

  - Adjustable keyboard clamp

  - Installation depth : 420.00 mm

  - Installation Depth (inches) : 16 1/2"

  - Installation depth min. (inches) : Installed depth: 15 3/4�; Extended depth: 26 3/8�

  - Installation width : Min. width required for installation: 30 3/4�

  - Installation width min. : 600.00 mm

  - Installation width min. (inches) : 24"

  - Area of application : For occasional users or home office

  - Load bearing capacity : 20.00 kg

  - Load bearing capacity : 44 lbs

  - Extension depth : 679.00 mm

  - Extension Depth (inches) : 26 3/4"

  - Installation : Min. width: (24") 600 mmMin. depth: (16 1/2") 420 mmExtended depth: (26 3/4") 679 mm

  - Suitable for : Ball bearing slides with hold-in and hold-out detents

  - Supplied with:

  - Mounting hardware


  Additional Information …

  Simple assembly is required

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 5.39



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_5.3-5.4.pdf

  Hafele 632.65.305, 632-65-305, 63265305, 632.65


  Specifications/Hafele Catalog - Page# FC5.4: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Office Organization Catalog Return to: All Hafele Catalogs
