Hafele 595.19.200 Base Cabinet Pull-Out, 3-Tier, 90 degree

Product Information

• Description

  Manufacturer: Hafele
  Item: 595.19.200

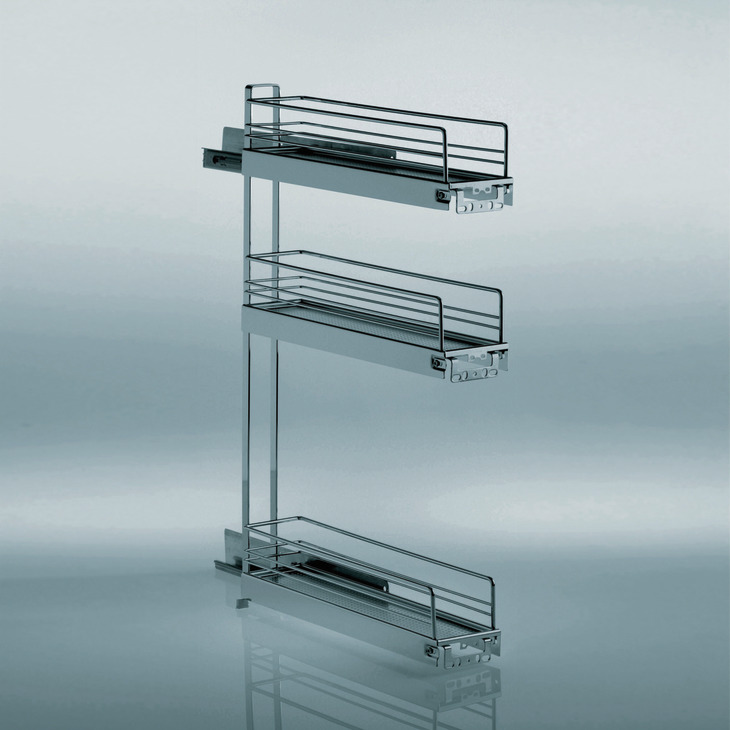

  Product Title: Base Cabinet Pull-Out, 3-Tier, 90°, Steel, chrome 26.4 lbs (12 kg) load capacity

  Category: Base Cabinet Pull-Out, 3-Tier, 90°, Steel, chrome 26.4 lbs (12 kg) load capacity

  Item Details …

  - Shelves accommodate items with Ø90 mm (3 1/2")

  - Make the most of a narrow space

  - Slides are concealed under the metal trays

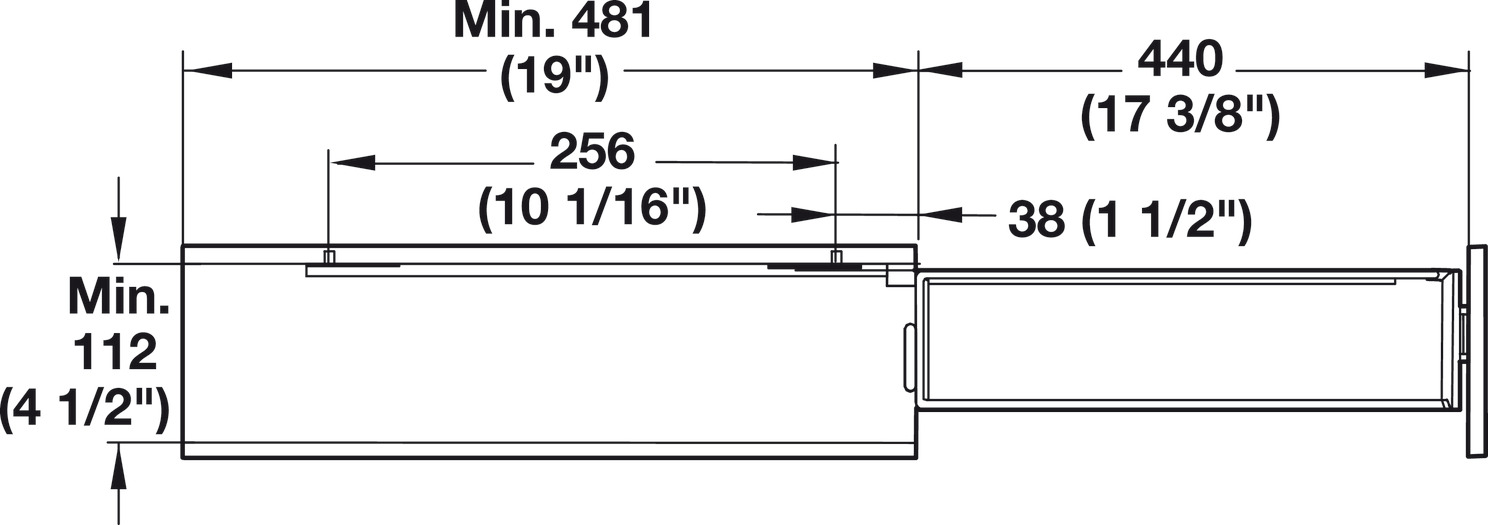

  - For internal cabinet depth : ?481 mm

  - Color/finish : Chrome

  - Mounting : Right-hand side

  - Version : 3-Tier Pull-out

  - For internal cabinet depth min. : 19"

  - Internal cabinet height : Min. 29 3/4"

  - Type of pull out : Full extension

  - Load bearing capacity : 12.00 kg

  - Load bearing capacity : 26.4 lbs

  - Material : Steel

  - Installation : Right-hand side

  - Features : Full extension soft closing slides

  - Supplied with:

  - Textured surface metal trays

  - Full extension Grass Nova Pro runners


  Additional Information …

  This item does not fit inside a standard height base cabinet.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Base Pull-Out 15'er 3-Tier Instructions



• Brand PDF Catalogs
