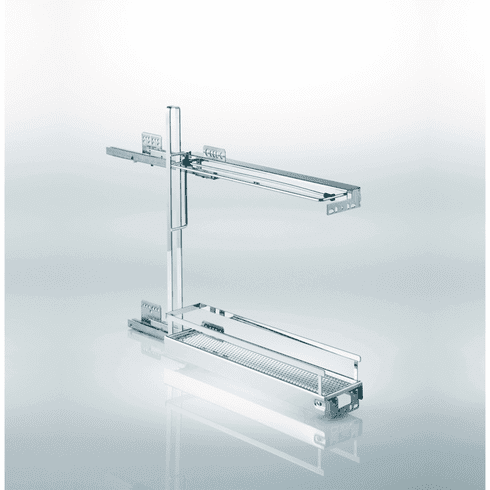

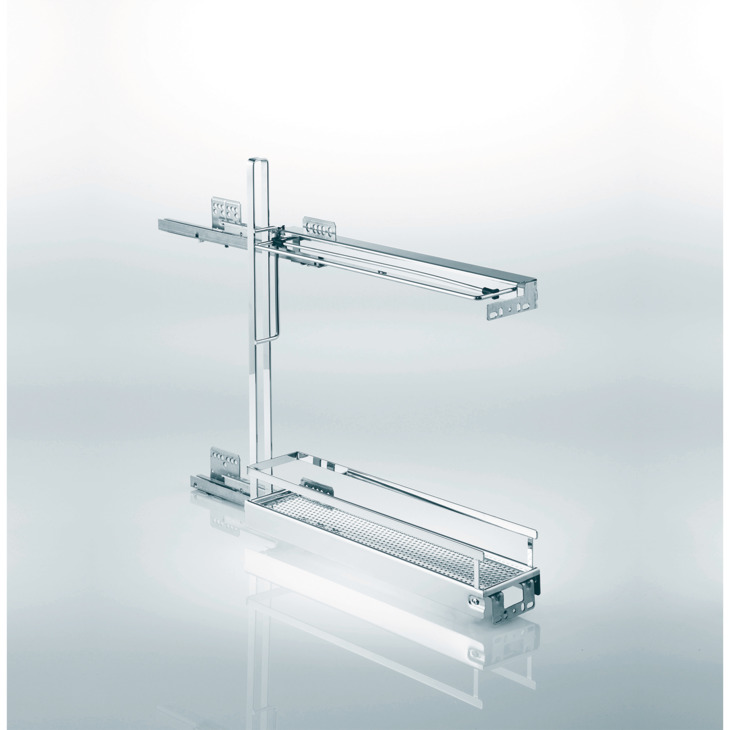

Hafele 595.18.230 Base Pull-Out, Baking Tray 90 degree

Product Information

• Description

  Manufacturer: Hafele
  Item: 595.18.230

  Product Title: Base Pull-Out, Baking Tray 90°, Chrome, steel, 26 lbs (12 kg) load capacity

  Category: Base Pull-Out, Baking Tray 90°, Chrome, steel, 26 lbs (12 kg) load capacity

  Item Details …

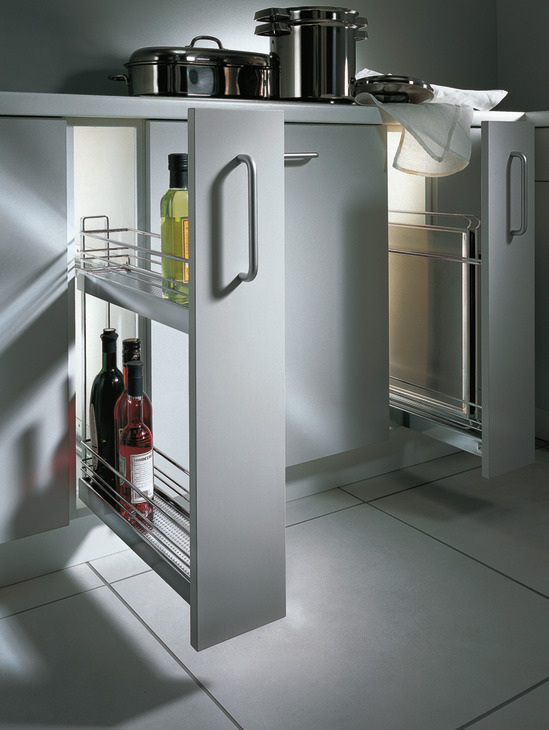

  - Use all the spaces in your kitchen, even the narrow ones

  - Organize your baking trays, serving trays or cutting boards

  - A great addition to any kitchen

  - For cabinet width : 150 mm

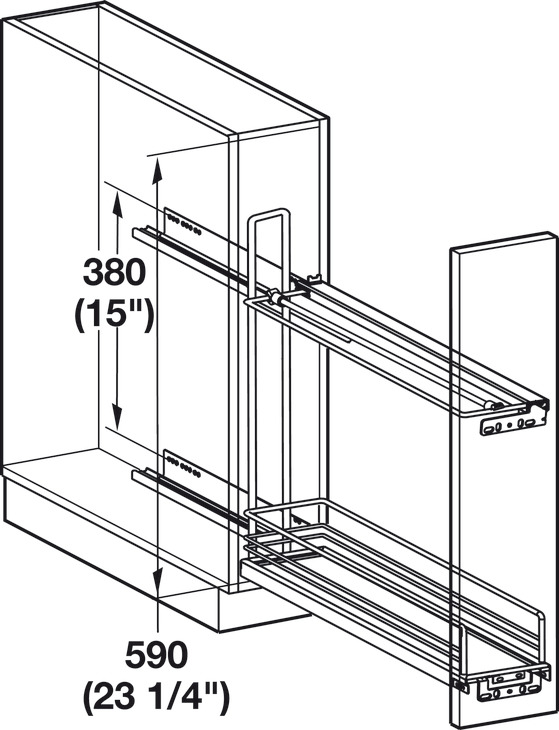

  - For internal cabinet height : ?590 mm

  - Color/finish : Chrome

  - Mounting : Mounts on the right hand side

  - Version : Classic

  - Basket size (W x D x H) : 104?x?465?x?37 mm

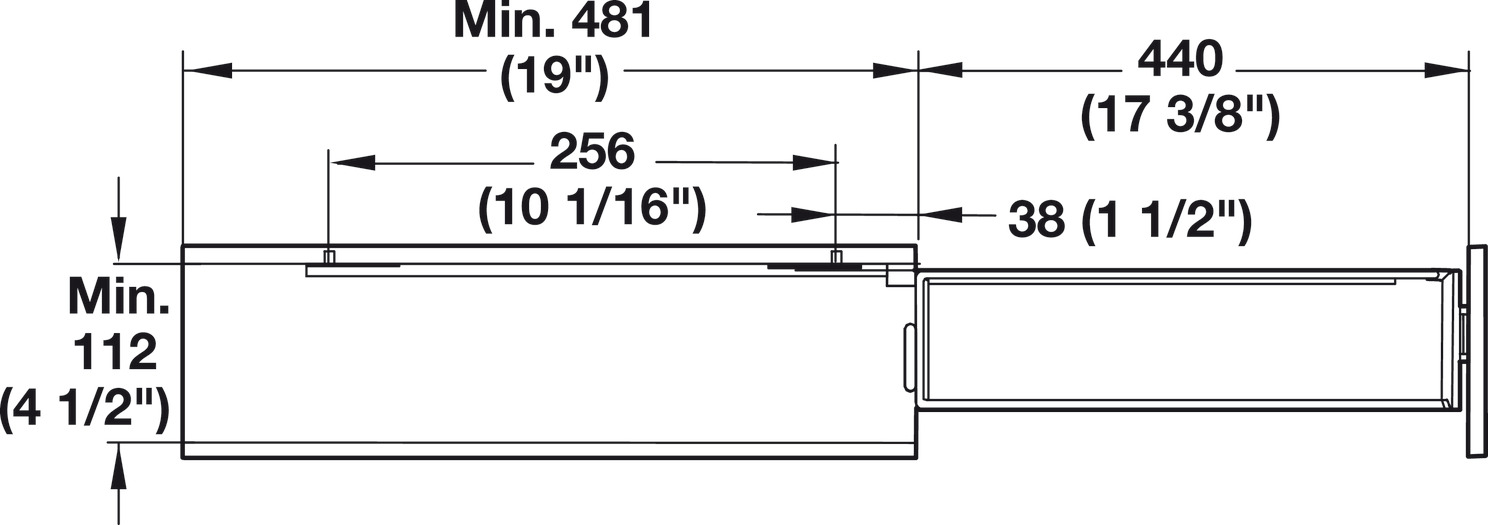

  - For internal cabinet depth min. : 19"

  - Internal cabinet width : 4 1/2"

  - Internal cabinet height : 21 1/4"

  - Type of pull out : Full extension

  - Load bearing capacity : 12.00 kg

  - Load bearing capacity : 26 lbs

  - Installation depth : 505.00 mm

  - Material : Steel

  - Installation : Screw mount to side panel

  - Soft closing mechanism : Yes

  - Features : Soft & Silent

  - Supplied with:

  - Full extension Grass Nova Pro runners

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Base Pull-Out 15'er Towel and Baking Tray Instructions

  Operating instructions



• Brand PDF Catalogs

• Required Products & Optional Accessories

  Optional Accessories:



  • Movable Divider, for Base Pull-Outs
