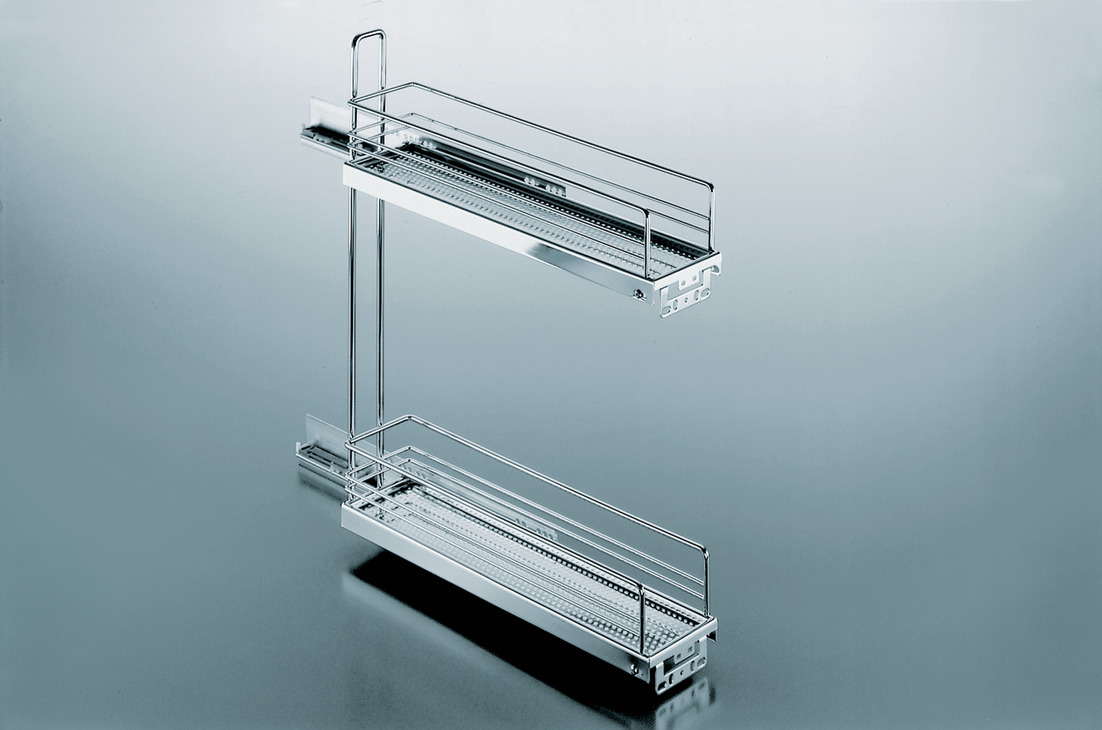

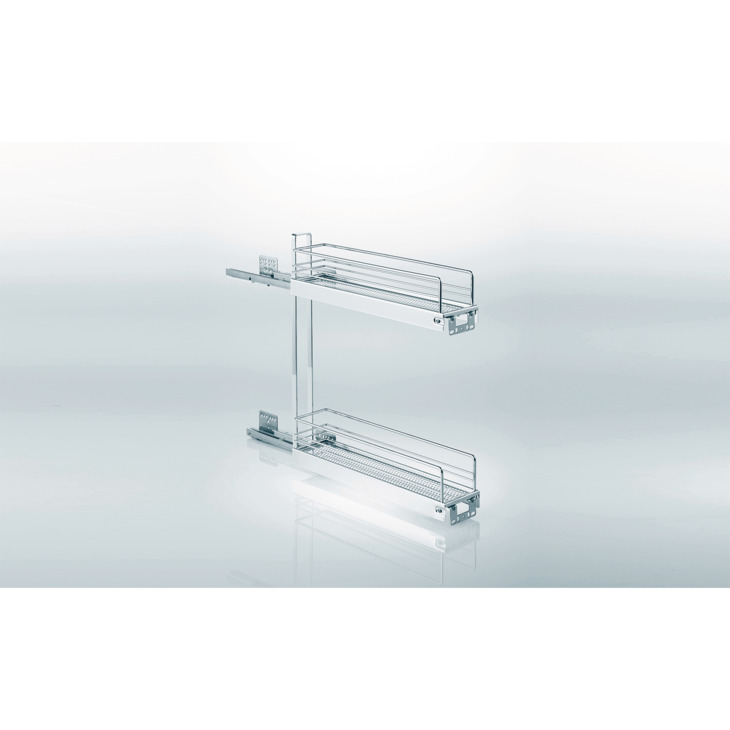

Hafele 595.18.200 Base Pull-Out, 2-Tier, 90 degree

Product Information

• Description

  Manufacturer: Hafele
  Item: 595.18.200

  Product Title: Base Pull-Out, 2-Tier, 90°, Chrome, steel, 26.4 lbs (12 kg) load capacity

  Category: Base Pull-Out, 2-Tier, 90°, Chrome, steel, 26.4 lbs (12 kg) load capacity

  Item Details …

  - Soft & Silent Feature slows the pull-out just before final closure, creating automatic and silent closing

  - Slides are concealed under the metal trays

  - Make the most of a narrow space

  - Shelves accommodate items with Ø90 mm (3 1/2")

  - For cabinet width : 150 mm

  - For internal cabinet height : ?540 mm

  - Color/finish : Chrome

  - Mounting : Right-hand side

  - Version : Classic

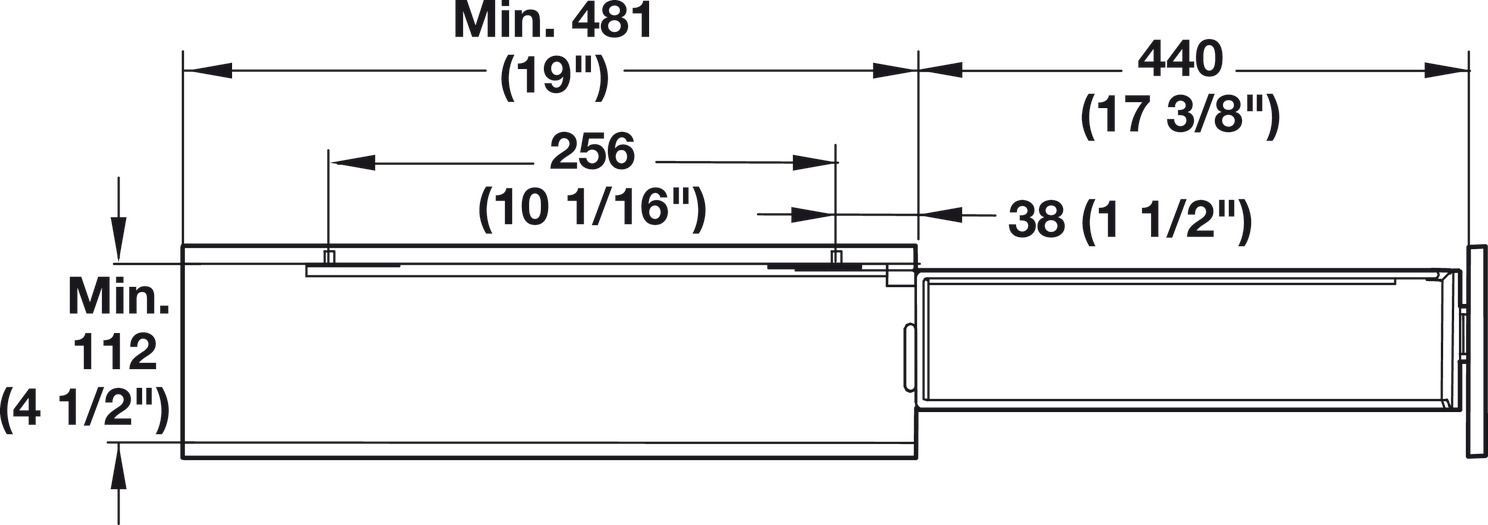

  - Basket size (W x D x H) : 104?x?465?x?37 mm

  - For internal cabinet depth min. : 19"

  - Internal cabinet height : Min. 21 1/4"

  - Type of pull out : Full extension

  - Load bearing capacity : 12.00 kg

  - Load bearing capacity : 26.4 lbs

  - Installation depth : 505.00 mm

  - Material : Steel

  - Installation : Right-hand side

  - Soft closing mechanism : Yes

  - Features : Full extension soft closing slides

  - Supplied with:

  - Textured surface metal trays

  - Full extension Grass Nova Pro runners

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Base Pull-Out 15'er 2-Tier Instructions

  Operating instructions
