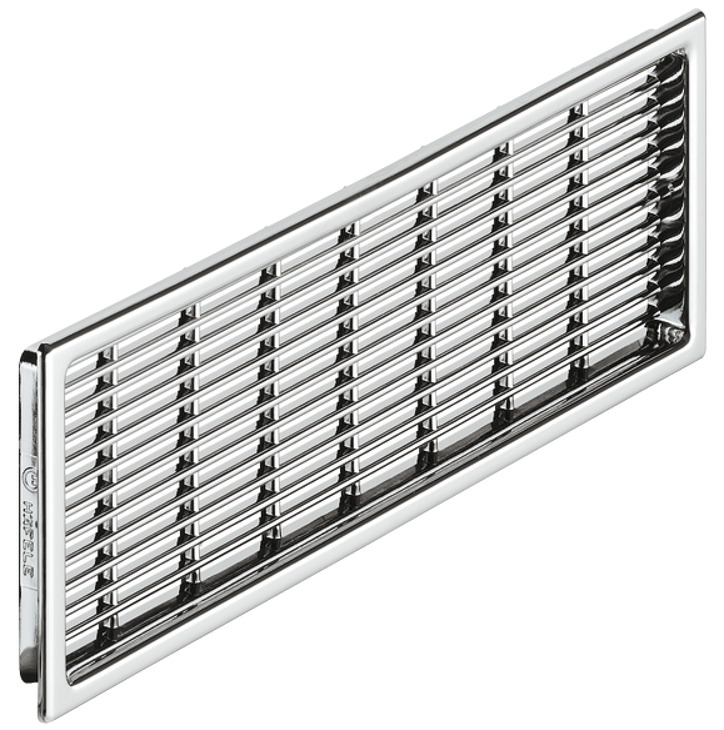

Hafele 571.54.248 Ventilation Trims, 42.24 sq-cm Vent Area (9 1/16") 230, Chrome Plated

Product Information

• Description

  Manufacturer: Hafele
  Item: 571.54.248

  Product Title: Ventilation Trims, 42.24 cm² Vent Area, (9 1/16") 230, Chrome Plated

  Category: Ventilation Trims, 42.24 cm² Vent Area, (9 1/16") 230, Chrome Plated

  Item Details …

  - Material : Plastic

  - Length x width mm : 230 x 68 mm

  - Cut-out (L x W) : 220 x 61 mm

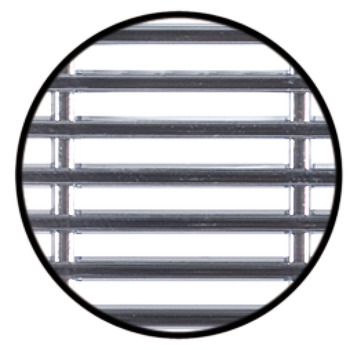

  - Color/finish : chrome plated

  - Ventilation : 42.20 cm²

  - Version : With flanged rim

  - Installation : For recess mounting

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 3.148



• Specifications

  Hafele 571.54.248, 571-54-248, 57154248, 571.54


  Specifications/Hafele Catalog - Page# FC3.96: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Kitchen Organization Catalog Return to: All Hafele Catalogs
