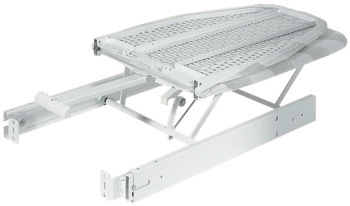

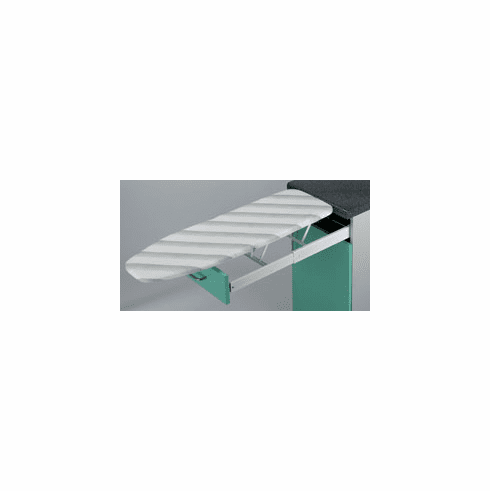

Hafele 568.60.710 Ironfix Ironing Board, Built-In For drawer installation

Product Information

• Description

  Manufacturer: Hafele
  Item: 568.60.710

  Product Title: Häfele Ironfix® Ironing Board, Built-In, For drawer installation, cover: Gray stripes

  Category: Häfele Ironfix® Ironing Board, Built-In, For drawer installation, cover: Gray stripes

  Item Details …

  - Locks in left, right, or inclined position

  - Space-saving

  - Integrated spring mechanism

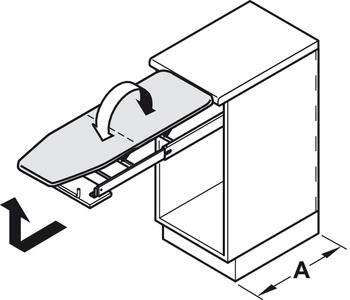

  - Drawer front folds down to allow for trousers, shirts, etc.

  - Support extends automatically as ironing board is pulled out

  - Optional sleeve board available

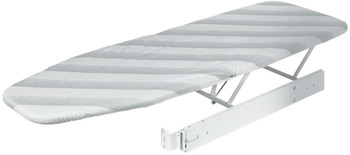

  - Includes heat-resistant cover

  - Cover : Grey stripes

  - For drawer depth : Inside clear depth: 19 11/16”

  - Color/finish : Ironing Board: White (RAL 9016); Cover: White with gray stripes

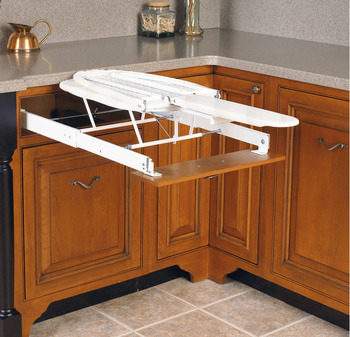

  - Area of application : For installation in the drawer space of most standard base cabinets

  - Version : Folding, ironing board supports automatically extend when the drawer is opened, continuous width adjustment

  - Material : Ironing Board: SteelCover: Cotton

  - Features : Cotton cover with foam lining and elastic gathering, suitable for all kinds of irons, steam permeable

  - Further adjustment facility : Continuous width adjustment for inside clear widths of (14 1/4” - 19 11/16”) 362 - 500 mm

  - Extension length : 950.00 mm

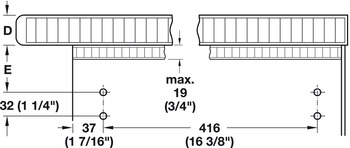

  - Mounting : The maximum countertop overhang is 55 mm (2 3/16")

  - Installation : Installs into drawer

  - Supplied with:

  - Installation hardware

  - Mounting instructions

  - Runners

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  568.60.710 Ironfix Mounting Instructions

  Fitting instructions for "Ironfix" ironing board

  TCH_Furniture_Cabinetry_Hardware_2022| Page 4.145



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_4.92-4.95.pdf

  Hafele 568.60.710, 568-60-710, 56860710, 568.60


  Specifications/Hafele Catalog - Page# FC4.68: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Home & Closet Organization Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Replacement Häfele Ironfix® Heat-Resistant Cover, For Ironing Board (568.60.710)
