Hafele 558.56.754 Single-Wall Metal Drawer System, Supra 86 (Side Height: 3 3/8") Length: 450 mm (18")

Product Information

• Description

  Manufacturer: Hafele
  Item: 558.56.754

  Product Title: Single-Wall Metal Drawer System, Supra 86 (Side Height: 3 3/8"), Length: 450 mm (18")

  Category: Single-Wall Metal Drawer System, Supra 86 (Side Height: 3 3/8"),

  Item Details …

  - Easy assembly & installation

  - Pencil drawer height

  - Soft-closing mechanism available

  - Bottoms and backs use 16 mm (5/8�) board ICW-31

  - Bottom rests securely in place by 2 prongs on drawer member

  - Height (inch) : 3 3/8"

  - Supplied with:

  - No secured locking.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Supra Assembly Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.54



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.24-8.25.pdf



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Internal Drawer Front Fixing Bracket, for Supra 86 Single-Wall Metal Drawer System (choose one):


  • roll-out

    558.57.799

    Click to order



  Front Fixing Bracket, for Supra 86 and 150 Single-Wall Metal Drawer System (choose one):


  • adjustable, dowel mounted, nickel-plated adjustable, Screw-on adjustable, dowel mounted, white

    555.68.309 558.57.499 558.57.797

    Click to order Click to order Click to order

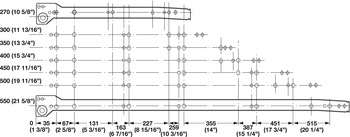

  Cabinet Member, for Supra Single-Wall Metal Drawer System (choose one):


  • Length: 270 mm (11") Length: 400 mm (16") Length: 550 mm (22") Length: 350 mm (14") Length: 450 mm (18") Length: 500 mm (20")

    558.57.401 558.57.403 558.57.406 558.57.702 558.57.704 558.57.705

    Click to order Click to order Click to order Click to order Click to order Click to order



  Optional Accessories:



  • Indamatic Soft Closer, for Supra Single-Wall Metal Drawer System
