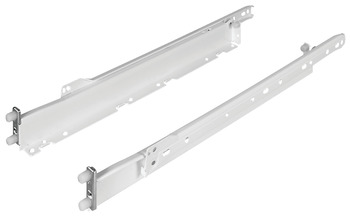

Hafele 558.26.855 Single-Wall Metal Drawer System, Grass Zargen 6035 (Side Height: 1 11/16") (21 5/8") 550 mm length, model 12125-04

Product Information

• Description

  Hafele 558.26.855 Single-Wall Metal Drawer System, Grass Zargen 6035 (Side Height: 1 11/16")
  (21 5/8") 550 mm length, model 12125-04

  Note: This product can only be purchased in minimum quantity of 10



  Model series : 6035

  Type of locking : Self-closing feature with (2 3/8") 60 mm closing range

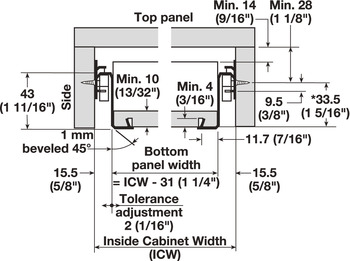

  Tolerance specification : Adjustment: 2 mm (3/32")

  Load bearing capacity : (100 lbs) 45 kg

  Adjustment : Height: (± 2 mm)
  Side (± 1.5 mm)

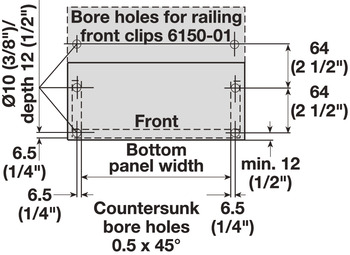

  For panel thickness : Bottom: (1/2 - 3/4") 12.7 - 19 mm

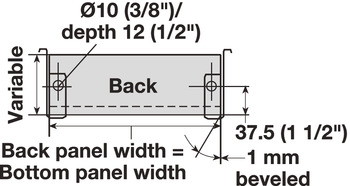

  For panel thickness : Back: (5/8 - 3/4") 16 - 19 mm

  Height : Side: (1 11/16") 43 mm

  Material : Steel

  Color : White



  Supplied with :

  10 Sets



  Optional items:
  Full Extension Member, for Grass Zargen Single-Wall Metal Drawer System
  Spare Guide Clip, for Grass Zargen Single-Wall Metal Drawer System
  Side Railing, for Grass Zargen Single-Wall Metal Drawer System


• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.21-8.21.pdf

  Hafele 558.26.855, 558-26-855, 55826855, 558.26


  Specifications/Hafele Catalog - Page# FC8.74: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs
