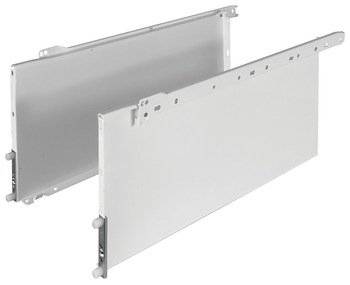

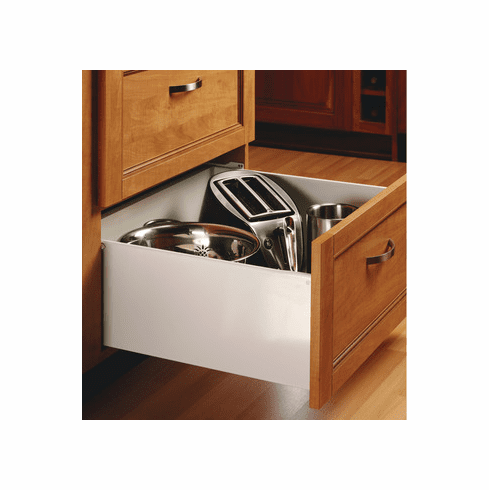

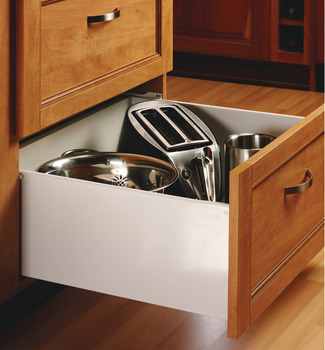

Hafele 558.24.856 Single-Wall Metal Drawer System, Grass Zargen 6436 (Side Height: 8 3/8") Grass, (21 5/8") 550 mm length, model 22711-12 (BULK pack)

Product Information

• Description

  Manufacturer: Hafele
  Item: 558.24.856

  Product Title: Single-Wall Metal Drawer System, Grass Zargen 6436 (Side Height: 8 3/8"), Grass, (21 5/8") 550 mm length, model 22711-12 (BULK pack)

  Category: ,

  Item Details …

  - Allow minimum of 3 mm (1/8�) for bottom clearance. If screws are used, increase clearance accordingly.

  - Drawer slide attachment: Wood screws #6 x 5/8 FHP; Euro screw for 5 mm system holes

  - Bottom panel length = slide length - panel thickness - 3 mm

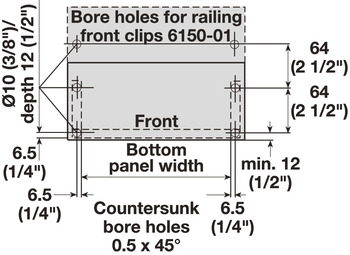

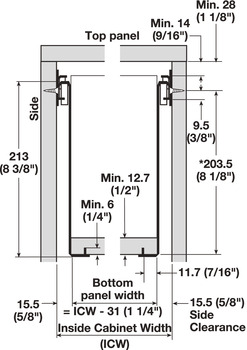

  - Bottom panel width = ICW - 31 (1 1/4")

  - Made in the USA

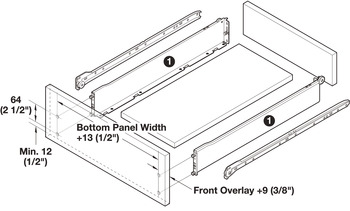

  - Quick assembly through dowelled and integrated front fixing brackets

  - Height (inch) : 25 9/32"

  - Color/finish : White

  - Comfort functions opening/closing : Self close

  - Comfort function type : Soft-close

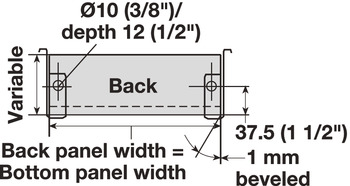

  - For min. panel thickness : Back: 5/8"; Bottom: 1/2"

  - For max. panel thickness : Back: 3/4"; Bottom: 3/4"

  - Material : Steel

  - Load bearing capacity : 45.00 kg

  - Load bearing capacity : 100 lbs

  - Order reference

  - Bulk packaging consists of 200 sets and is a full skid.

  - Supplied with:

  - 5 Sets
