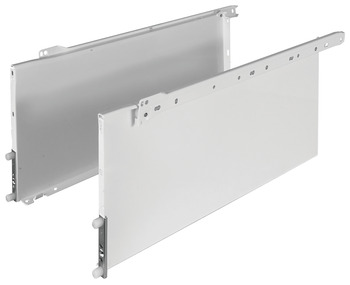

Hafele 558.24.847 Single-Wall Metal Drawer System, Grass Zargen 6436 (Side Height: 8 3/8")
Grass, (18 1/2") 470 mm length, model 22709-03
Note: This product can only be purchased in minimum quantity of 5Model series : 6436 Type of locking : Self-closing feature with (2 3/8") 60 mm closing range Tolerance specification : Adjustment: 2 mm (3/32") Load bearing capacity : (100 lbs) 45 kg Adjustment : Height: ± 2 mm

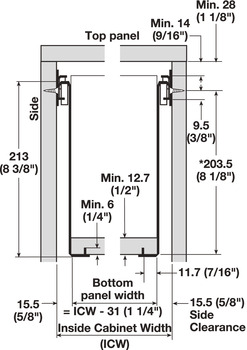

Side: ± 1.5 mmFor panel thickness : Bottom: (1/2 - 3/4") 13 - 19 mm For panel thickness : Back: (5/8 - 3/4") 16 - 19 mm Height : Side: (8 3/8") 213 mm Material : Steel Color : White Supplied with : 5 Sets
Optional items:
Full Extension Member, for Grass Zargen Single-Wall Metal Drawer System
Spare Guide Clip, for Grass Zargen Single-Wall Metal Drawer System
Soft Closet Damper Set, for Grass ZargenSpecifications
For detailed PDF specifications, click:
Hafele Catalog Page: selection_8.19-8.21.pdfHafele 558.24.847, 558-24-847, 55824847, 558.24 Specifications/Hafele Catalog - Page# FC8.72:
