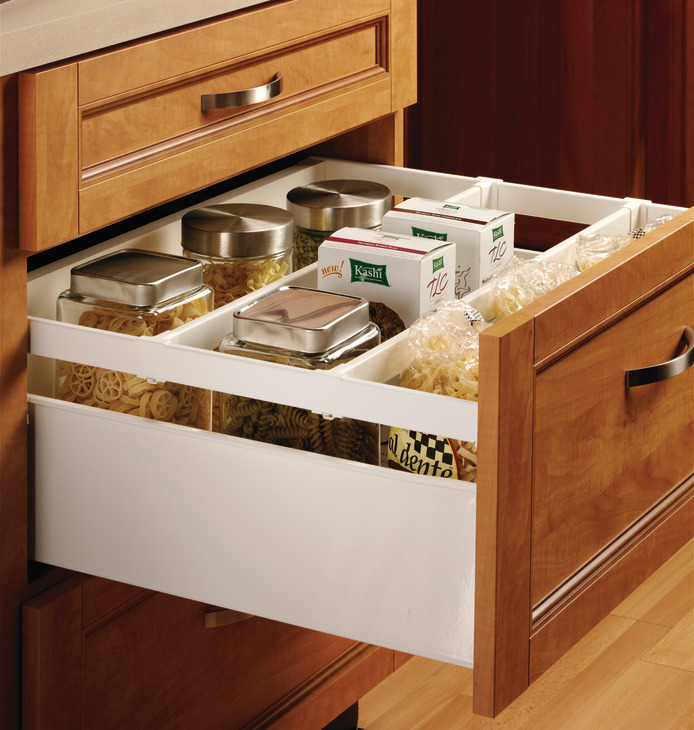

Hafele 558.23.855 Single-Wall Metal Drawer System, Grass Zargen 6236 (Side Height: 5 7/8") (21 5/8") 550 mm length, model 22707-03

Product Information

• Description

  Hafele 558.23.855 Single-Wall Metal Drawer System, Grass Zargen 6236 (Side Height: 5 7/8")
  (21 5/8") 550 mm length, model 22707-03

  Note: This product can only be purchased in minimum quantity of 5



  Model series : 6236

  Type of locking : Self-closing feature with (2 3/8") 60 mm closing range

  Tolerance specification : Adjustment: 2 mm (3/32")

  Load bearing capacity : (100 lbs) 45 kg

  Adjustment : Height: (± 2 mm)
  Side (± 1.5 mm)

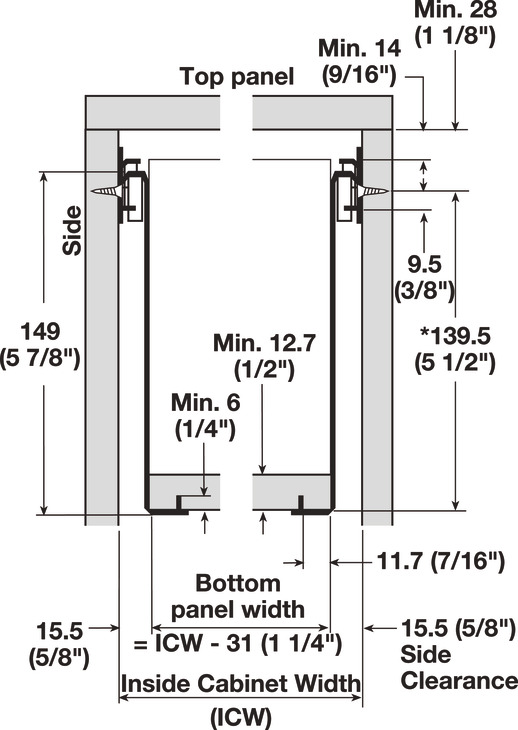

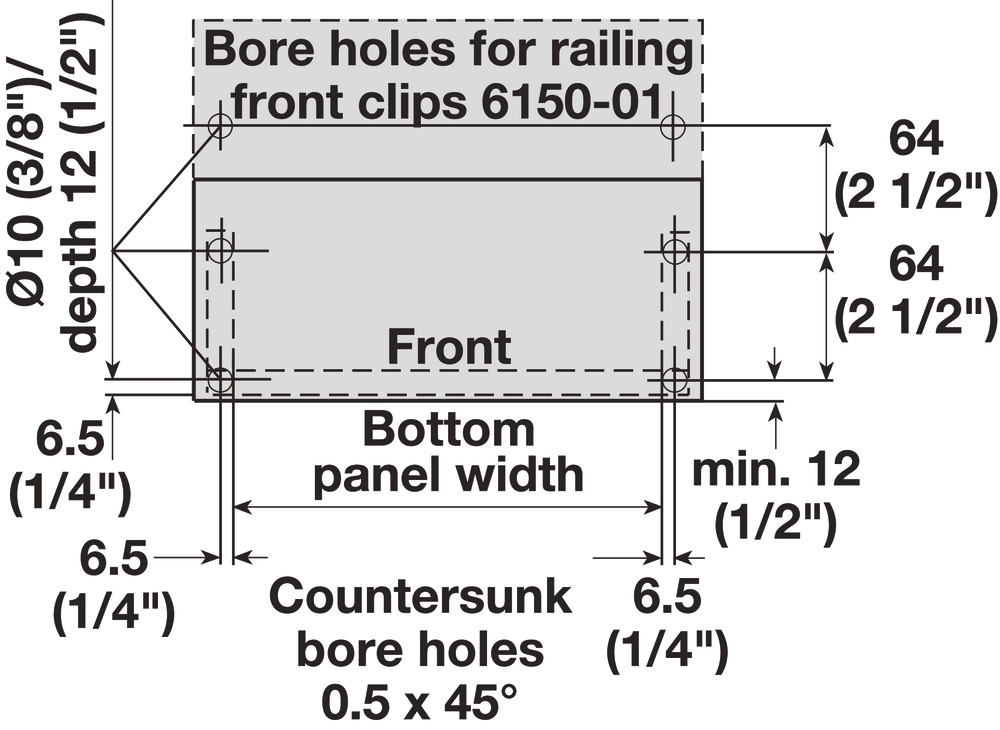

  For panel thickness : Bottom: (1/2 - 3/4") 12.7 - 19 mm

  For panel thickness : Back: (5/8 - 3/4") 16 - 19 mm

  Height : Side: (5 7/8") 149 mm

  Material : Steel

  Color : White



  Supplied with :

  5 Sets



  Optional items:
  Full Extension Member, for Grass Zargen Single-Wall Metal Drawer System
  Spare Guide Clip, for Grass Zargen Single-Wall Metal Drawer System
  Side Railing, for Grass Zargen Single-Wall Metal Drawer System
  Divider Rail, for Grass Zargen Single-Wall Metal Drawer System
  Soft Closet Damper Set, for Grass Zargen


• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.19-8.21.pdf
