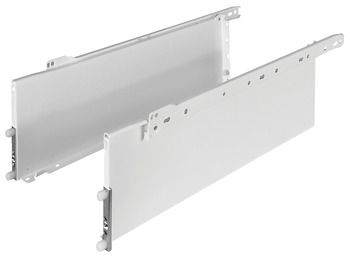

Hafele 558.23.844 Single-Wall Metal Drawer System, Grass Zargen 6236 (Side Height: 5 7/8") (17 3/8") 440 mm length, model 22704-03

Product Information

• Description

  Manufacturer: Hafele
  Item: 558.23.844

  Product Title: Single-Wall Metal Drawer System, Grass Zargen 6236 (Side Height: 5 7/8"), (17 3/8") 440 mm length, model 22704-03

  Category: Single-Wall Metal Drawer System, Grass Zargen 6236 (Side Height: 5 7/8"),

  Item Details …

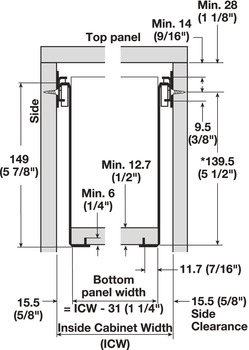

  - Allow minimum of 3 mm (1/8�) for bottom clearance. If screws are used, increase clearance accordingly.

  - Drawer slide attachment: Wood screws #6 x 5/8 FHP; Euro screw for 5 mm system holes

  - Bottom panel length = slide length - panel thickness - 3 mm

  - Bottom panel width = ICW - 31 (1 1/4")

  - Made in the USA

  - Quick assembly through dowelled and integrated front fixing brackets

  - Height (inch) : 23 5/16"

  - Color/finish : White

  - Comfort functions opening/closing : Self close

  - Comfort function type : Soft-close

  - For min. panel thickness : Back: 5/8"; Bottom: 1/2"

  - For max. panel thickness : Back: 3/4"; Bottom: 3/4"

  - Material : Steel

  - Load bearing capacity : 45.00 kg

  - Load bearing capacity : 100 lbs

  - Order reference

  - Bulk packaging consists of 200 sets and is a full skid.

  - Supplied with:

  - 5 Sets

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.46



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.19-8.21.pdf

  Hafele 558.23.844, 558-23-844, 55823844, 558.23


  Specifications/Hafele Catalog - Page# FC8.72: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Full Extension Member, for Grass Zargen Single-Wall Metal Drawer System
  • Soft Closet Damper Set, for Grass Zargen
