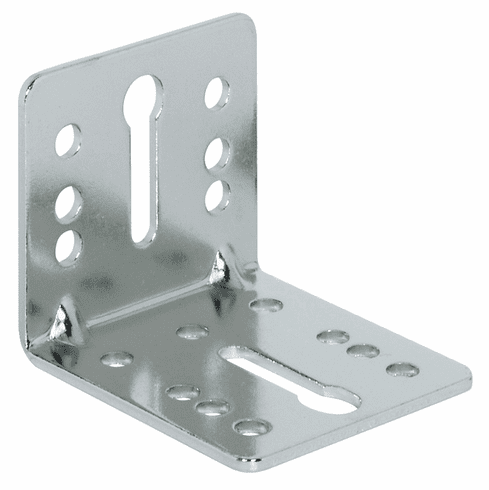

Hafele 558.12.943 Mounting Plate, Bed Connector Steel, Nickel-plated

Product Information

• Description

  Manufacturer: Hafele
  Item: 558.12.943

  Product Title: Mounting Plate, Bed Connector, Steel, Nickel-plated

  Category: Mounting Plate, Bed Connector, Steel, Nickel-plated

  Item Details …

  - Extremely strong and invisible

  - Dimensions of recesses should be taken directly from the fittings

  - Material : Steel

  - Color/finish : nickel plated

  - Screw holes : With 2 horizontal slots and additional screw holes

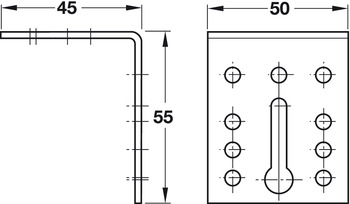

  - Leg length : 55 / 45 mm

  - Width : 50.00 mm

  - Area of application : For fixing the carcase rail without existing side panel or for use as universal connection bracket

  - Material thickness : 2.00 mm

  - Installation : Use #8 pan head screw to install plate, and #10 pan head screw for keyhole slot
