Hafele 557.59.142 Rollout Tray, Maple For 15" cabinet width; 7 3/4" tray height; Frameless

Product Information

• Description

  Manufacturer: Hafele
  Item: 557.59.142

  Product Title: Roll-out Tray, Maple, For 15" cabinet width; 7 3/4" tray height; Frameless

  Category: Roll-out Tray, Maple,

  Item Details …

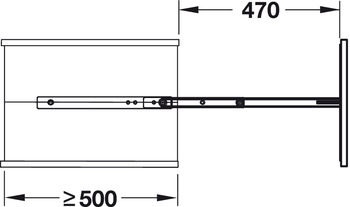

  - Notched and drilled for undermount slides

  - 5/8" solid maple with dovetail construction

  - Two height options: 3 1/2" and 7 3/4"

  - Material : Maple

  - Color/finish : Plastic coated white aluminum, RAL 9006

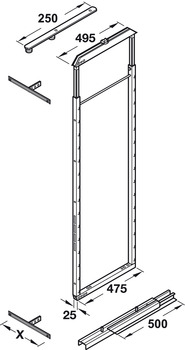

  - Depth (inch) : 21 1/8"

  - Version : Frameless

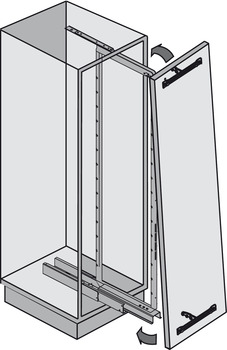

  - Installation : Position above or below door hinges

  - Load bearing capacity : 100.00 kg

  - Order reference

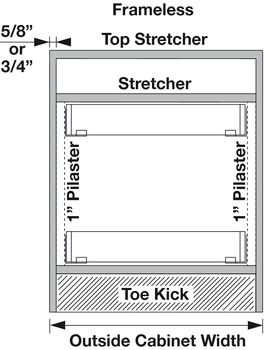

  - The sizes listed are the outside cabinet widths with the option for face frame or frameless in each.

  - There are 3 steps to order the Roll-Out Trays:

  - 1. Choose your tray

  - 2. Choose your drawer slide

  - 3. Choose your pilaster system

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 3.68



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Full Height (28"), Pilaster X-Series Bracket Kits (choose one):


  • 1 1/4" width 2 1/2" width

    431.01.810 431.01.812

    Click to order Click to order



  Standard Height (20 7/8"), Pilaster X-Series Bracket Kits (choose one):


  • 1 1/4" width; single pack 1 1/4" width; bulk pack 2 1/2" width; single pack 2 1/2" width; bulk pack

    431.01.800 431.01.801 431.01.802 431.01.803

    Click to order Click to order Click to order Click to order



  Pantry Height (58 5/8"), Pilaster X-Series Bracket Kits (choose one):


  • 1 1/4" width 2 1/2" width

    431.01.820 431.01.822

    Click to order Click to order



  Grass Dynapro 16 Full Extension Slide, 100 lbs. (choose one):


  • 2D adjustment, 9" length, model F130135013604 3D adjustment, 9" length, model F130135003604 2D adjustment, 12" length, model F130135014604 3D adjustment, 12" length, model F130135004604 2D adjustment, 15" length, model F130135015204U 3D adjustment, 15" length, model F130135005604 2D adjustment, 18" length, model F130135016204U 3D adjustment, 18" length, model F130135006204U 2D adjustment, 21" length, model F130135019204U 3D adjustment, 21" length, model F130135007204U

    433.19.424 433.19.425 433.19.432 433.19.433 433.19.440 433.19.441 433.19.447 433.19.448 433.19.455 433.19.456

    Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order



  Grass Elite Plus 16 Slide, Full Extension, 75 lbs (choose one):


  • Drawer length: 240 mm (9 7/16") Drawer length: 305 mm (12") Drawer length: 381 mm (15") Drawer length: 457 mm (18") Drawer length: 533 mm (21") Drawer length: 381 mm (15") Drawer length: 457 mm (18") Drawer length: 533 mm (21")

    433.25.110 433.25.111 433.25.112 433.25.113 433.25.114 433.25.122 433.25.123 433.25.124

    Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order
