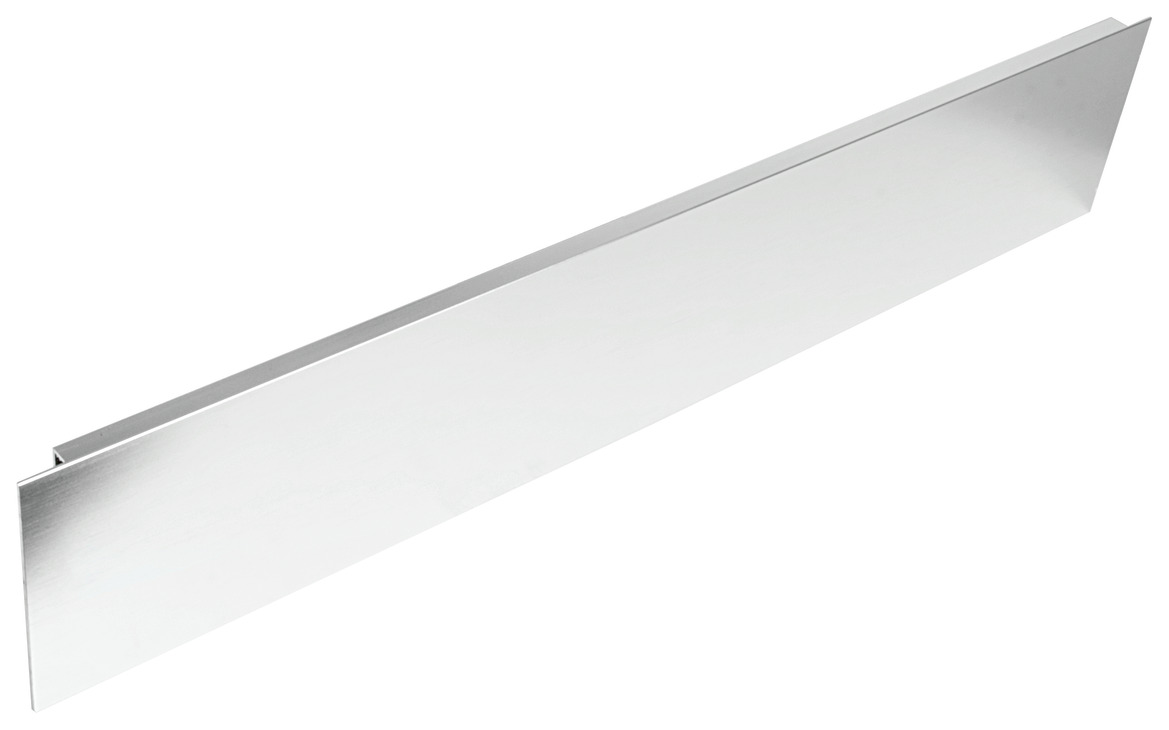

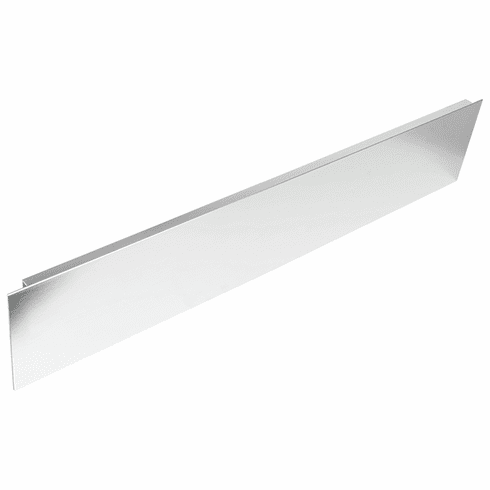

Hafele 555.83.714 Salice Lineabox, aluminum side profile, AMUMXD10533GP white, 101mm height x 533mm length

Product Information

• Description

  Manufacturer: Hafele
  Item: 555.83.714

  Product Title: Double-Wall Drawer System Frame, Drawer side height 101 mm (4"), Lineabox, Salice, Length (21") 533 mm, white

  Category: Double-Wall Drawer System Frame, Drawer side height 101 mm (4"), Lineabox, Salice,

  Item Details …

  - 16 mm (5/8") bottom, back and sub-front material

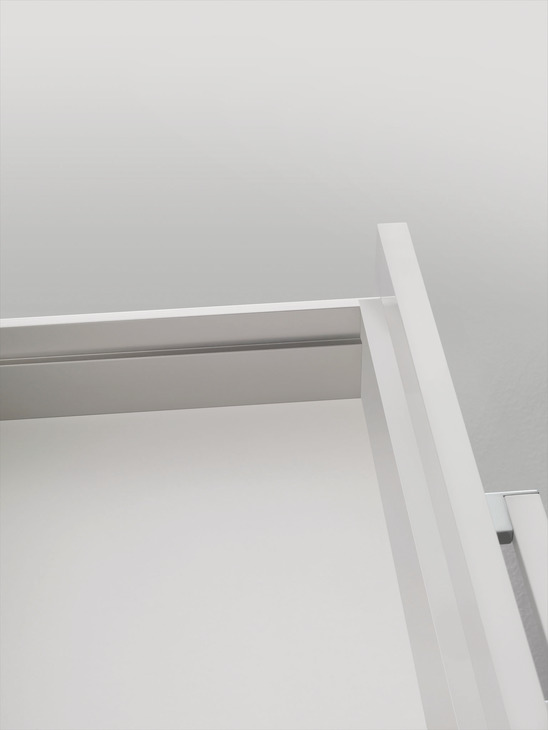

  - Metal drawer system with clean, simple lines and minimal wall thickness to maximize internal space

  - Sides are notched front and back for a completely finished appearance without the need for "short-edge" edgebanding

  - Lifetime warranty

  - Drawer side height : 101.00 mm

  - Drawer side height : 4"

  - Material : Aluminum

  - Order reference

  - Parts are sold as pieces, not pairs.

  - Supplied with:

  - 12 pcs./box (makes 6 drawers) - members are non-handed


  Additional Information …

  Requires 4 front/back fixing clips.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.41A



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Front Fixing, for Salice Lineabox (choose one):


  • Screw (2 x ø3.5 mm x 20 mm) (supplied) Dowel (5 mm)

    555.82.310 555.82.313

    Click to order Click to order



  Optional Accessories:



  • Salice Progressa+ Push Drawer Slide, Full Extension for 12 mm (1/2") to 16 mm (5/8") drawer material
  • Salice Progressa+ Smove Drawer Slide, Full Extension for 12 mm (1/2") to 16 mm (5/8") drawer material
  • Salice A7555 Futura 16 Slide, Full Extension, 75 lbs
