Hafele 553.61.815 Front Panel, MX Length: 788mm (31"), champagne

Product Information

• Description

  Manufacturer: Hafele
  Item: 553.61.815

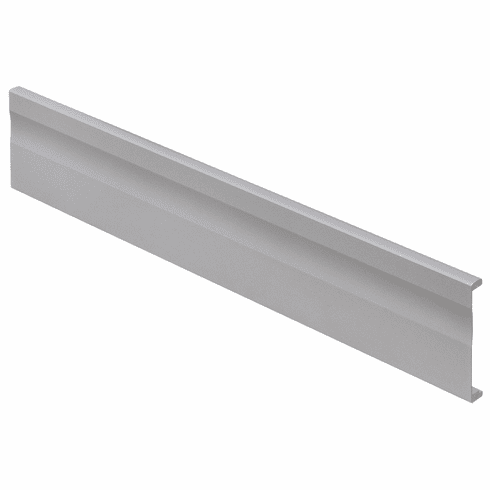

  Product Title: Front Panel, Häfele Matrix, Aluminum, Length: 788 mm (31"), champagne

  Category: Front Panel, H�fele Matrix, Aluminum

  Item Details �

  - Front panel finish matches perfectly to side profiles

  - Can be cut to size

  - Can be used with or without rails

  - Front panel is cut 80 mm (3 1/8”) less than the inside cabinet width

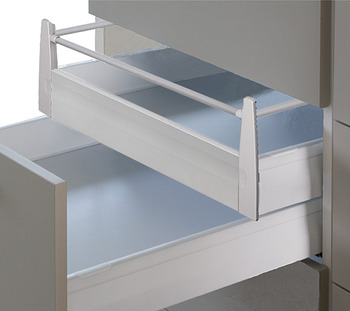

  - Suitable for : Drawer side runner system Matrix Box, Internal drawer and internal pull out

  - Area of application : Panel for internal drawer and internal pull out

  - Material : Aluminum

  - Version : Can be shortened

  - Installation : Holders for screw fixing to the panelpanel is clipped onto the drawer sides with panel holders

  - Height : 95.00 mm

  - Height (inch) : 3 3/4"

  - Installation reference : Front panel finish matches perfectly to side profilesCan be cut to sizeCan be used with or without railsFront panel is cut 80 mm (3 1/8”) less than the inside cabinet width


  Additional Information �

  Holders for screw fixing to the panelpanel is clipped onto the drawer sides with panel holders

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions for Moovit with Matrix

  Installation instructions for Moovit drawer

  Installing a Matrix Roll-Out Tray





• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.6-8.6.pdf

  Hafele 553.61.815, 553-61-815, 55361815, 553.61
