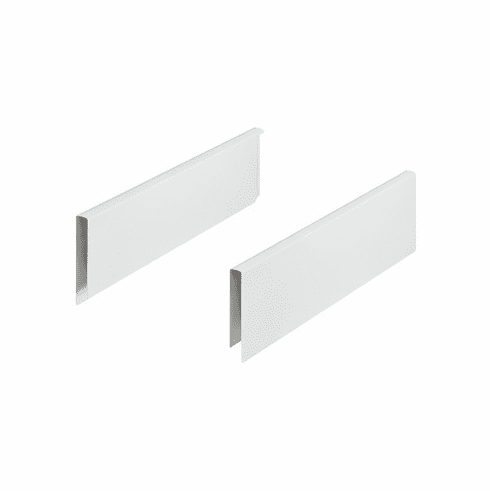

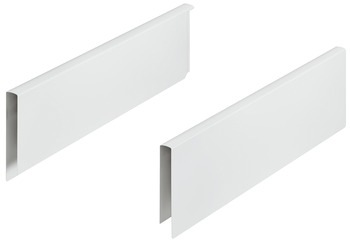

Hafele 553.60.606 Height Extension Panel, Matrix Box P Length 550mm (21 5/8"), metallic white

Product Information

• Description

  Manufacturer: Hafele
  Item: 553.60.606

  Product Title: Height Extension Panel, Häfele Matrix Box P, For gallery railing system, Length 550 mm (21 5/8"), metallic white

  Category: Add-on drawer sides, H�fele Matrix Box P, For gallery railing system

  Item Details �

  - Prerequisite: Pull out with round railing (without cross railing)

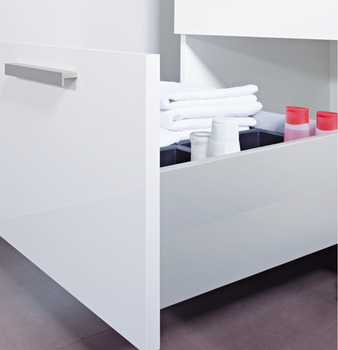

  - tall kitchen items are protected from falling out or tipping over thanks to the enclosed height extension side panels

  - matches the colour of the drawer sides

  - Profile height: 92 mm (3 5/8”)

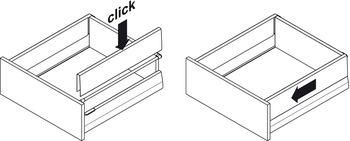

  - Quickly and simply extends the height of the drawer by clipping over the railing and onto the drawer side profile

  - Panel finish matches perfectly to the profile

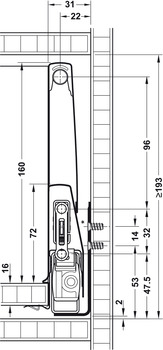

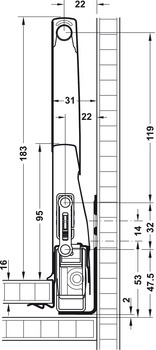

  - Area of application : For increasing the height of the enclosed internal space of the pull out by 88 mm to a total height of 160 mm (92 mm drawer side) or 183 mm (115 mm drawer side)

  - Model series : Matrix Box P

  - Material : Steel

  - Installation : For clip fixing to railing and drawer sides

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Matrix P | The ultimate drawer system

  Matrix P Installation, Adjustment and Removal

  TCH_Furniture_Cabinetry_Hardware_2022| Page 8.13



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.7-8.7.pdf



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Railing Set, Round, Häfele Matrix Box P
