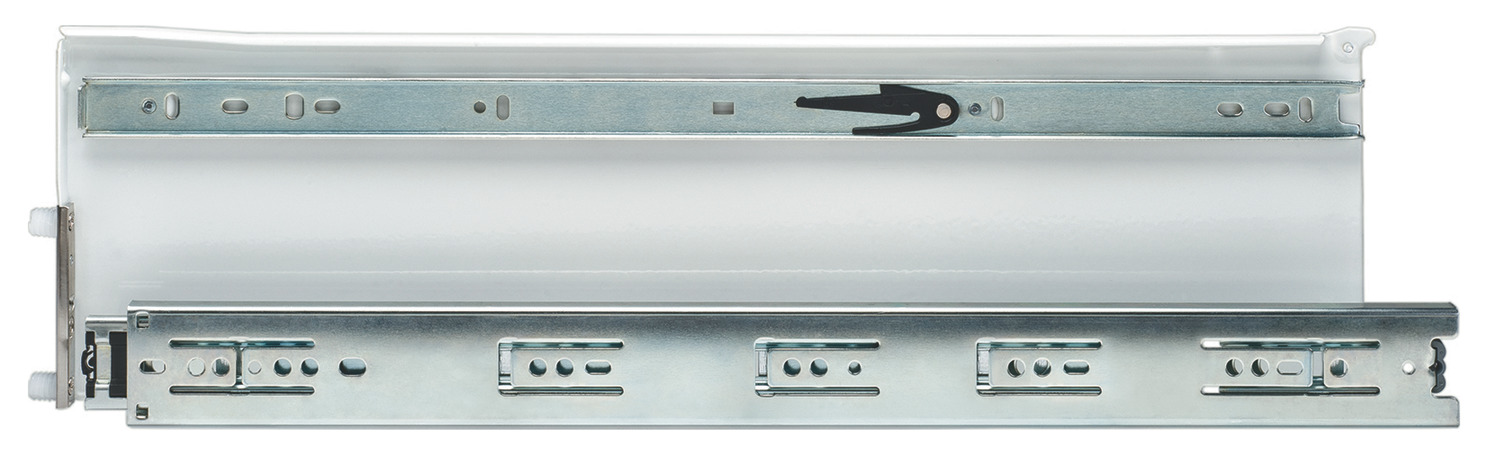

Hafele 553.31.814 Grass Zbox 6023/470, steel, white, 85mm x 470mm, gen 2 slide

Product Information

• Description

  Manufacturer: Hafele
  Item: 553.31.814

  Product Title: Drawer System Slide, Zbox, 3 3/8" Height, Grass, length: 470mm

  Category: Drawer System Slide, Zbox, 3 3/8" Height, Grass

  Item Details �

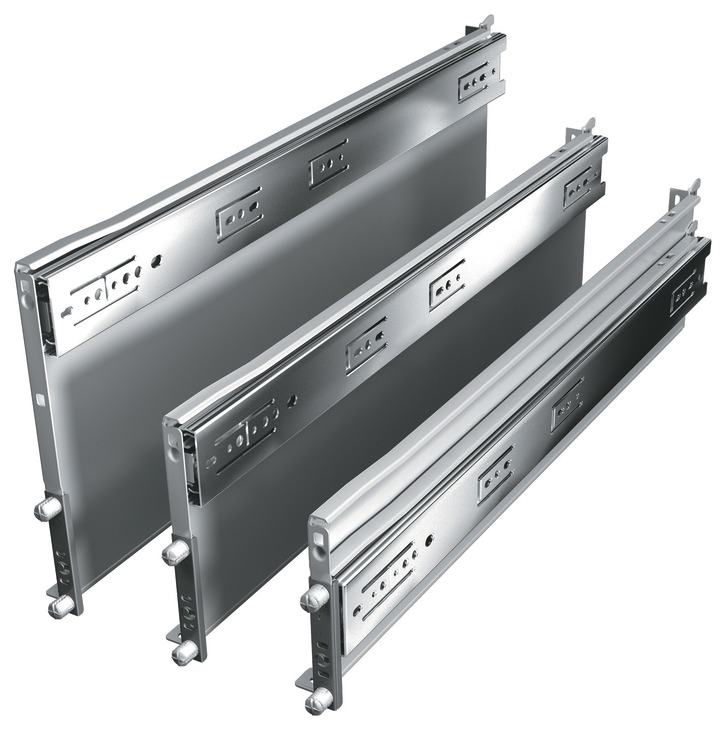

  - Integrated side mount ball bearing telescopic full extension drawer slide and metal drawer side

  - Easy lever disconnect

  - Made in USA

  - Meets & exceeds ANSI/BHMA 156.9 Grade 1 testing

  - Height (inch) : 3 3/8"

  - Color/finish : Sides: Epoxy powder coated whiteSlides: Zinc coated white

  - Material : Sides & Slides: Steel

  - Load bearing capacity : 45.00 kg

  - Load bearing capacity : 100 lbs

  - Installation : Frameless or face framed mounting

  - Order reference

  - If face frame, please order 553.31.990 (Rear Socket or Face Frame Rear bracket)

  - Supplied with:

  - All boxes are 5 sets. A set includes:

  - Left & right DMs (drawer member)

  - Left & right CMs (cabinet member)

  - SPQs are non-breakable
