Hafele 553.00.946 Grass Nova Pro Full Extension Drawer Runner 450 mm slide length, 431 extension, model 63667-04
Product Information
Description

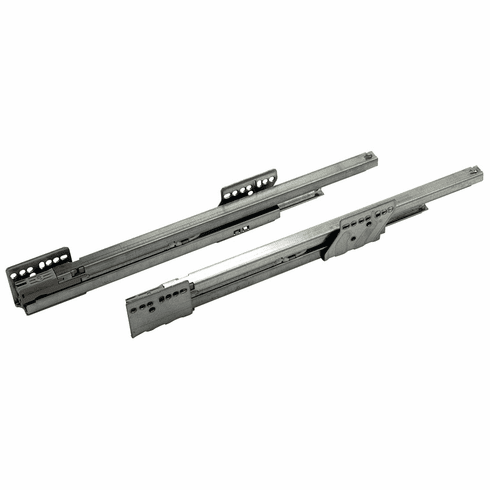

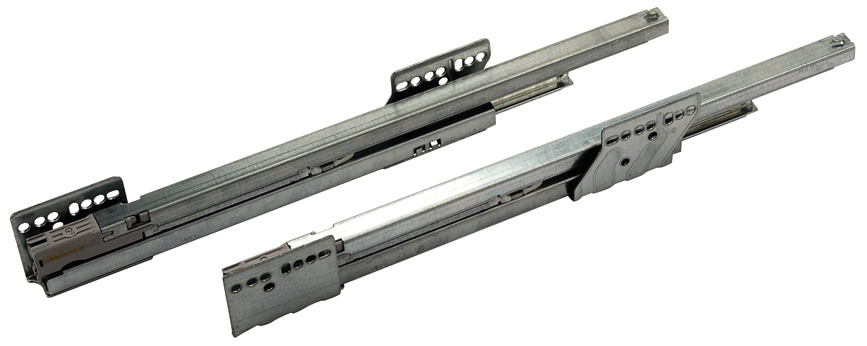

Hafele 553.00.946 Grass Nova Pro Full Extension Drawer Runner
450 mm slide length, 431 extension, model 63667-04
Note: This product can only be purchased in minimum quantity of 5Length : (18) 450 mm Extension length : (17) 431 mm Model : 63667-04 Internal cabinet depth : Required internal cabinet depth = slide length plus 3 mm (1/8)(for inner drawers plus 23 mm (7/8)) Thickness : Thickness of bottom and rear panel: 16 mm (5/8) Width : Bottom width = internal cabinet width minus 58+0.5 mm (2 5/16) Length : Bottom length = slide length minus 19 mm (3/4) Features : With full extension/roller-bearing guides
With self-closing actionLoad bearing capacity : 40 kg (88 lbs) Material : Galvanized Steel Order reference : Ordering Example:
For 10 pairs of Nova Drawer Systems:
Order 10 pairs - 553.00.951 (Cabinet members)
Order 10 pairs - 553.10.251 (Drawer members)
Order 10 sets - 577.99.950 (Installation hooks)
