Hafele 553.00.330 Power Supply, for Sensomatic Drawer Opener Power supply unit, model F121100269607

Product Information

• Description

  Manufacturer: Hafele
  Item: 553.00.330

  Product Title: Power Supply, for Sensomatic Drawer Opener, Power supply unit, model F121100269607

  Category: Power Supply, for Sensomatic Drawer Opener, Power supply unit, model F121100269607

  Item Details …

  - Power supply: 110 V

  - Power frequency: 50 to 60 Hz

  - Max. power output: 230 WOpening unit supply voltage: 24 V

  - Operating conditions temperature: 32° to 120° F

  - Humidity: 15% to 90% non-condensing

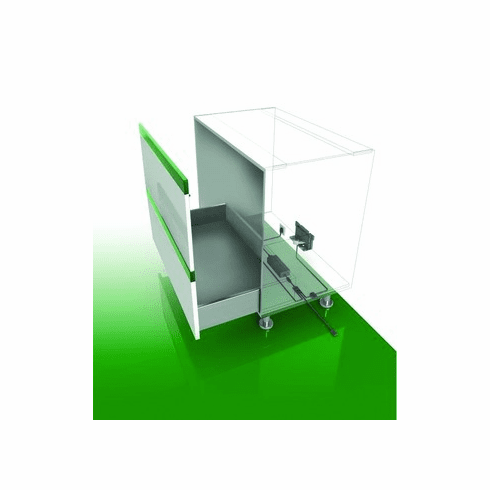

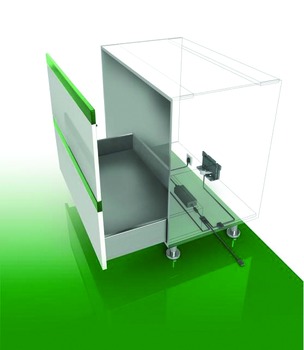

  - The electro mechanical opening system is triggered by a light touch anywhere on the surface of the front which causes drawers to glide evenly and smoothly

  - Available for use with Dynapro dynamic runners or Nova Pro drawer systems

  - Please see catalogue for additional installation information

  - System parts:

  - 1. Opening unit, for eithe Dynapro or Nova Pro drawer systems, grey plastic

  - 2. Frame sides, aluminium 653 mm, including cable, to suit 720 mm high cabinet

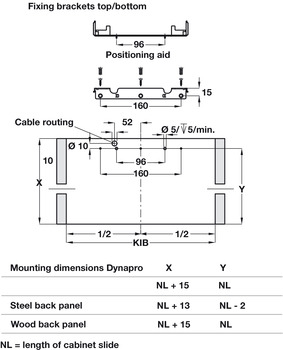

  - 3. Frame set, consists of: 1x set of 6 fixing brackets

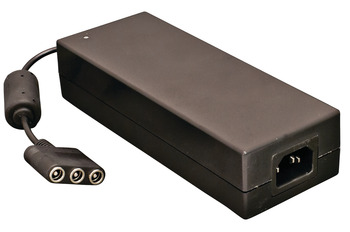

  - 4. Power supply, input 100-240V, 50-60 HZ, output 24V DC, max. 120W, black plastic

  - 5. Mains cable, 2000 mm lead length, black

  - 6. Connecting cable, 1600 mm length, black

  - 7. Door buffer, spring loaded, Diameter: 5 mm, with 3 mm front gap, grey plastic with spring mechanism

  - Connecting cable, allows up to three opening units to be opened simultaneously

  - Model : F121100269607

  - Material : Plastic
