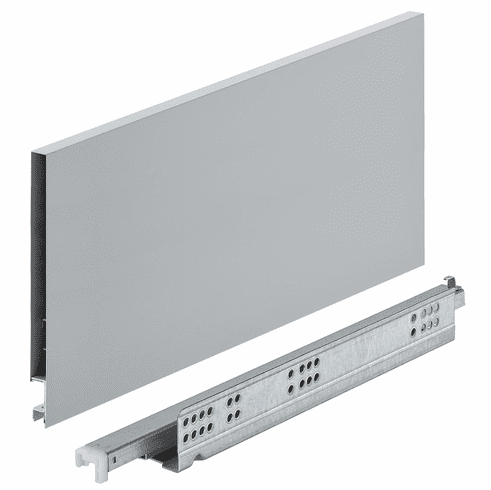

Hafele 552.28.624 Matrix Box Slim Wall A30 Set, soft close, gray, steel, H175mm x L450mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 552.28.624

  Product Title: Drawer Set, Häfele Matrix Box Slim A, 175 mm Drawer Height, (17 11/16") 450 mm nominal length; gray

  Category: Drawer Set, H�fele Matrix Box Slim A, 175 mm Drawer Height,

  Item Details �

  - Version : Thin drawer sides of 13 mm (1/2")Full extensionIntegrated soft closingIntegrated rear panel fitting

  - Drawer side height : 175.00 mm

  - Drawer side height : 6 7/8"

  - Material : Steel

  - Load bearing capacity : 30.00 kg

  - Load bearing capacity : 66 lbs

  - Adjustment facility : Front gap adjustment: 0-3 mmHeight adjustment: 0-3 mmSide adjustment: ± 1 mmTilt adjustment: 0-3 mm

  - Supplied with:

  - 1 left and 1 right thin-walled drawer side with rear panel fitting

  - 1 left and 1 right drawer slides

  - 1 left and 1 right right fixing clips

  - 1 left and 1 right front fixing bracket for screw fixing

  - 1 pair of L-shaped connecting brackets

  - 2 left and 2 right cover caps
