Hafele 552.28.524 MATRIX BOX SLIM A30 SFTC ANTH 175X450MM For 500mm drawer depth

Product Information

• Description

  Manufacturer: Hafele
  Item: 552.28.524

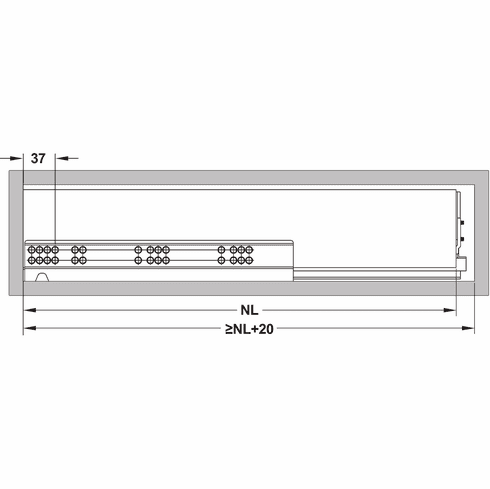

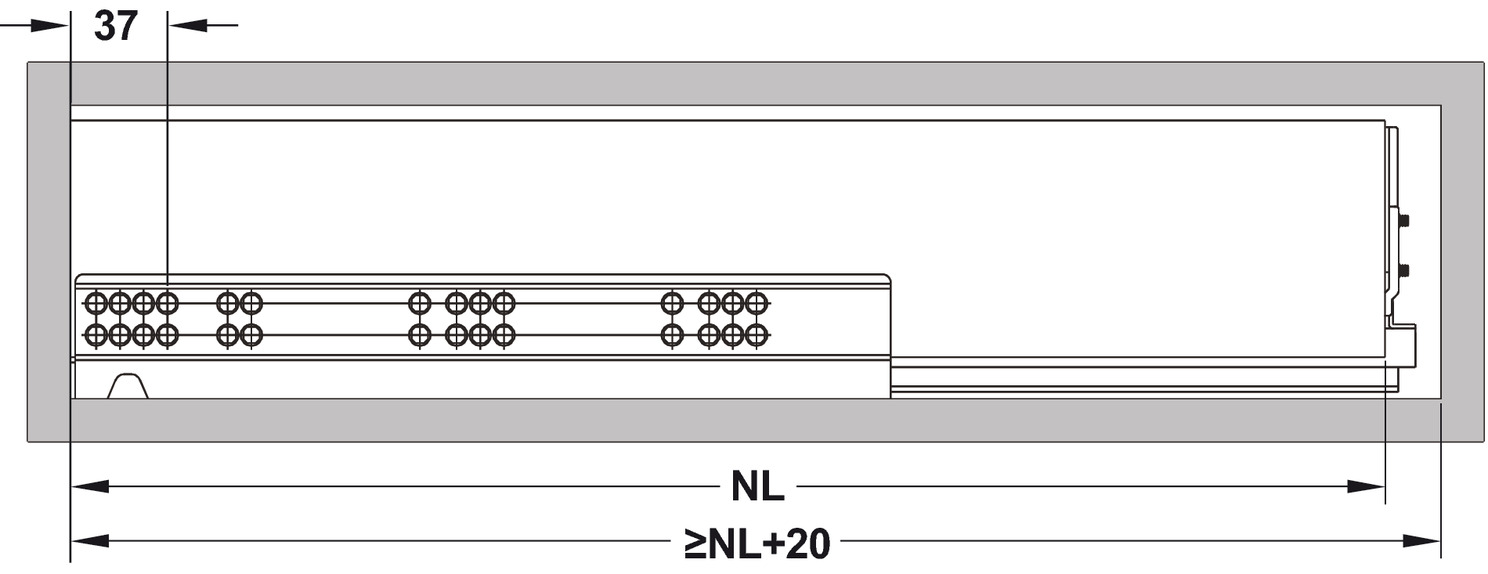

  Product Title: Drawer Set, Häfele Matrix Box Slim A, 175 mm Drawer Height, (17 11/16") 450 mm nominal length; anthracite

  Category: Drawer Set, H�fele Matrix Box Slim A, 175 mm Drawer Height,

  Item Details �

  - Version : Thin drawer sides of 13 mm (1/2")Full extensionIntegrated soft closingIntegrated rear panel fitting

  - Drawer side height : 175.00 mm

  - Drawer side height : 6 7/8"

  - Material : Steel

  - Load bearing capacity : 30.00 kg

  - Load bearing capacity : 66 lbs

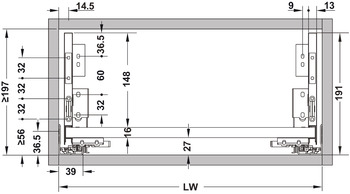

  - Adjustment facility : Front gap adjustment: 0-3 mmHeight adjustment: 0-3 mmSide adjustment: ± 1 mmTilt adjustment: 0-3 mm

  - Supplied with:

  - 1 left and 1 right thin-walled drawer side with rear panel fitting

  - 1 left and 1 right drawer slides

  - 1 left and 1 right right fixing clips

  - 1 left and 1 right front fixing bracket for screw fixing

  - 1 pair of L-shaped connecting brackets

  - 2 left and 2 right cover caps

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Matrix Box Slim A H175 installation instructions

  Hafele Slim Wall Drawer 3 star

  Matrix Box Slim A30 H175 Mounting Instructions

  Installation instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.21



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Front fixing bracket, Häfele Matrix Box Slim A
  • Inner Divider, For Matrix Box Slim A30
  • Cross railing holder, Häfele Matrix Box Slim A
  • Front Bracket Set, For Matrix Box Slim A30, 175 mm (6 7/8") Side Height
  • Cross Railing, For Matrix Box Slim A30
  • Panel, For Matrix Box Slim A30
  • Side Railing, Häfele Matrix Box Slim A
