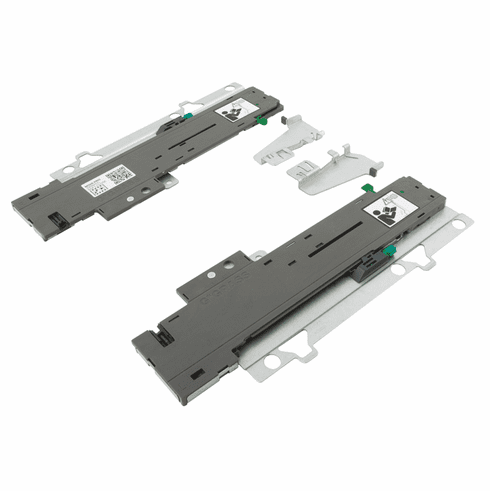

Hafele 551.80.000 Nova Pro Scala Tipmatic, soft close, unit and activator

Product Information

• Description

  Manufacturer: Hafele
  Item: 551.80.000

  Product Title: Eject unit, Tipmatic Soft-Close for Grass Nova Pro drawer side runner systems, Grass, Minimum front gap 2.5 mm

  Category: Eject unit, Tipmatic Soft-Close for Grass Nova Pro drawer side runner systems, Grass, Minimum front gap 2.5 mm

  Item Details …

  - Perfect combination of handle-free opening and gentle closing

  - large release area provided by synchronisation rod

  - Opening and closing function combined in one unit

  - same unit for all nominal lengths and weight classes thanks to 3-step ejection force adjustment

  - Product type : Eject unit

  - Suitable for : for Nova Pro Scala

  - Depth adjustment : -1 – 3 mm

  - Minimum front gap : 2.50 mm

  - Installation : For screwing under

  - Installation reference : The ejector unit is attached to the drawer sides without tools and secured with a screw

  - Order reference

  - Synchronisation rod â“€ not supplied, please order separately.

  - Supplied with:

  - 1 Tipmatic Soft-close eject unit

  - 2 drivers


  Additional Information …

  For a large touch area for release it is recommended to use the synchronisation rod â“€.The support of the synchronisation rod â“€ is required from cabinet width 800 mm.
