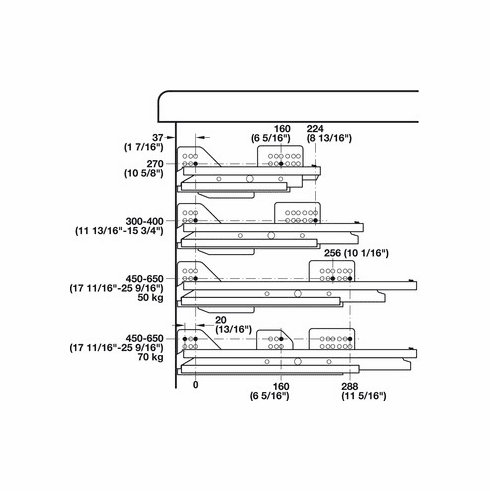

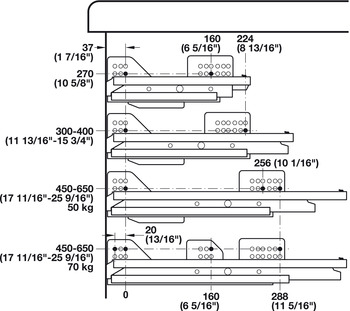

Hafele 551.54.828 Matrix Box P50, drawer side height 92 mm, load bearing capacity 50 kg Champagne, Length: 650 mm (25 9/16")

Product Information

• Description

  Hafele 551.54.828 Hafele Matrix Box P50, drawer side height 92 mm, load bearing capacity 50 kg
  Champagne, Length: 650 mm (25 9/16")



  Load bearing capacity : (110 lbs.) 50 kg

  Height : (3 5/8") 92 mm

  Type of closing : Soft & Silent

  Material : Steel

  Finish : Drawer sides: Epoxy coated
  Cabinet rail: Galvanized



  Supplied with :

  1 left and 1 right drawer slide

  1 left and 1 right cabinet profile

  2 cover caps



  Optional items:
  Drawer Front Fixing Bracket, Hafele Matrix Box P
  Stabilizing Plate, Front panel stabilising plate, Hafele Matrix Box P
  Spacer, For Hafele Matrix Box P internal drawer and internal pull out
  Cover Cap, Hafele MX
  Pressomat Drawer Press, for Assembly of Hafele MX
  Panel holder, Hafele Matrix Box P
  Drilling Jig, Hafele Matrix Box P
  Insertion Tool, Hafele MX
  Marking Gauge, Hafele Matrix Box P
  Rail Drilling Jig, Hafele Matrix Box P


• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.4-8.4.pdf
